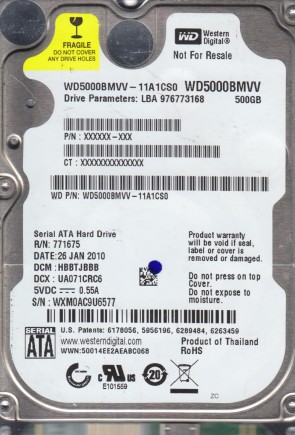

WD5000BMVV Western Digital 2.5″ hard drive with a storage capacity of 500GB and featuring a USB interface. WD5000BMVV Western Digital 500GB 5400RPM USB 2.5-inch Hard Disk Drive.
All information about the Western Digital WD5000BMVV hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD5000BMVV Technical Details:
- Hard Disk Model: WDC WD5000BMVV
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 500 GB (500 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: USB 2.0
- Buffer-Host Max. Rate: 60 MB/seconds
- Buffer Size: 8192 KB
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 500 mA
- Power Required (Seek): 2.5 W
- Power Required (Idle): 2.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Western Digital Corporation
Western Digital WD5000BMVV Hard Drives:
- WD5000BMVV-11A1CS0, DCM HBBTJBBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM HHCTJHBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM HANTJVB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS2, DCM HAOTJVB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM HABTJABB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HBCTJHB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HACTJHB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HB0TJBBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM EACT2VBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM HBNVJBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM EAOTJHB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HACTJAB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HAOTJAB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM HACTJAB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM EANTJBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM DBNTJBBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM HACTJBBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM EBBTJBBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HAOTJHN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HBOTJVB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM EAOT2HB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11A1CS0, DCM HABTJHBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11SXZS1, DCM HHOTJVB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM HBBTJBBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000BMVV-11GNWS0, DCM HANTJVN, Western Digital 500GB USB 2.5″ Hard Drive
Western Digital WD5000BMVV Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD5000BMVV Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD5000BMVV Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771814-001, 2060-701875-001, 2060-701675-004, etc.
Multiple Model Number revisions:
WD5000BUCT-63LS5Y1, WD5000BMVV-11SXZS2, WD5000BMVV-11SXZS1, WD5000BMVV-11A1CS0, WD5000BMVV-11GNWS0, etc.
