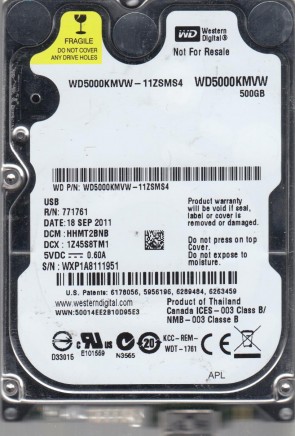

WD5000KMVW Western Digital 2.5″ hard drive with a storage capacity of 500GB and featuring a USB interface. WD5000KMVW Western Digital 500GB 7200RPM USB 3.0 2.5-inch Hard Disk Drive.
All information about the Western Digital WD5000KMVW hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD5000KMVW Technical Details:
- Hard Disk Model: WDC WD5000KMVW
- Disk Family: Elements/Passport
- Form Factor: 2.5″
- Capacity: 500 GB (500 x 1 000 000 000 bytes)
- Rotational Speed: 5200 RPM
- Rotation Time: 11.54 ms
- Average Rotational Latency: 5.77 ms
- Disk Interface: USB 3.0
- Buffer-Host Max. Rate: 400 MB/seconds
- Buffer Size: 8192 KB
- Manufacturer: Western Digital Corporation
Western Digital WD5000KMVW Hard Drives:
- WD5000KMVW-11ZSMS4, DCM HHMT2BNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HBMT2HNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HBMT2HBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HHMT2HBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM EHMT2HNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HHMT2BBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM EHMT2BNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HHMT2HNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM EBMT2BNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HBMTJHNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS5, DCM HHMT2BBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS5, DCM HHMT2HNB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HHMTJHBN, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS4, DCM HHOT2HBB, Western Digital 500GB USB 2.5″ Hard Drive
- WD5000KMVW-11ZSMS1, DCM HBMT2HN, Western Digital 500GB USB 2.5″ Hard Drive
Western Digital WD5000KMVW Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD5000KMVW Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD5000KMVW Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771692-005, 2060-771814-001, 2060-771761-001, 2060-771737-000, etc.
Multiple Model Number revisions:
WD5000KMVW-11ZSMS5, WD5000KMVW-11ZSMS4, WD5000KMVW-11ZSMS1, etc.
