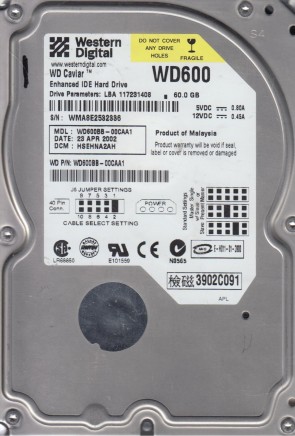

WD600BB Western Digital 3.5″ hard drive with a storage capacity of 60GB and featuring a IDE interface. WD600BB-75CAA1 Western Digital 60GB 7200RPM ATA-100 3.5-inch Hard Drive.
All information about the Western Digital WD600BB hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD600BB Technical Details:
- Hard Disk Model: WDC WD600BB
- Disk Family: Caviar
- Form Factor: 3.5″
- Capacity: 60 GB (60 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 2048 KB
- Drive Ready Time (typical): 6 seconds
- Average Seek Time: 8.9 ms
- Track To Track Seek Time: 2.0 ms
- Full Stroke Seek Time: 21.0 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 600 grams (1.32 pounds)
- Acoustic (Idle): 3.5 Bel
- Acoustic (Min performance and volume): 3.5 Bel
- Acoustic (Max performance and volume): 3.8 Bel
- Required Power For Spinup: 800 mA
- Power Required (Seek): 8.0 W
- Power Required (Idle): 7.25 W
- Power Required (Standby): 1.2 W
- Manufacturer: Western Digital Corporation
Western Digital WD600BB Hard Drives:
- WD600BB-00CAA1, DCM HSEHNA2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-32CCB0, DCM HREHBH2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-32CCB0, DCM DSEHBT2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CFC0, DCM RSBAET2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-75CAA0, DCM HSEHCV2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CJA1, DCM DSFHNA2CH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-75CAA0, DCM HREHNA2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-53CAA1, DCM DSEHNA2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CAA1, DCM DSEHNA2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-53CAA1, DCM HSFACV2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CAA1, DCM HSFHNA2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CAA1, DCM HSEHNA2CH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CJA1, DCM HSEHNA2CH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00DKA0, DCM DSBACVJCA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-75CAA0, DCM HSEACV2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-75CAA0, DCM DSEHCV2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-53CAA1, DCM DSFACV2AA, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-60CJA0, DCM HSFACV2AH, Western Digital 60GB IDE 3.5″ Hard Drive
- WD600BB-00CFC0, DCM RSBHET2AH, Western Digital 60GB IDE 3.5″ Hard Drive
Western Digital WD600BB Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD600BB Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD600BB Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-001092-006, 2060-001062-004, 2060-001159-006, 2060-001092-007, etc.
Multiple Model Number revisions:
WD600BB-32CCB0, WD600BB-00CAA1, WD600BB-00CJA1, WD600BB-00DKA0, WD600BB-75CAA0, WD600BB-53CAA1, WD600BB-60CJA0, WD600BB-00CFC0, etc.
