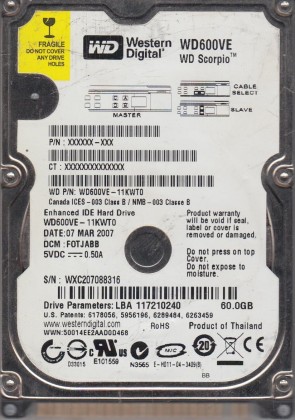

WD600VE Western Digital 2.5″ hard drive with a storage capacity of 60GB and featuring a IDE interface. WD600VE Western Digital Scorpio 60GB 5400RPM Ata-100 44-Pin 8MB Cache 2.5-inch Ultra- Slim Line Laptop Hard Drive.
All information about the Western Digital WD600VE hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD600VE Technical Details:
- Manufacturer: Western Digital
- Manufacturer Website: www.wdc.com
- Manufacturer Part No: WD600VE-00KWT0
- Product Series or Family: Scorpio
- Product Type: Internal Hard Drive
- Storage Capacity: 60GB
- Spindle Speed: 5400RPM
- Drive Interface: IDE
- Form Factor: 2.5Inch
- Cache: 8MB
Western Digital WD600VE Hard Drives:
- WD600VE-11KWT0, DCM FOTJABB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HCNTJHNH, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-75HDT0, DCM HCNTJHNH, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-75HDT1, DCM HCHTJHNB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00KWT0, DCM HOTJBBN, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-11KWT0, DCM FNTJBBB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-75HDT1, DCM HCHTJBFB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HYNTJHNH, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-08HDT0, DCM FYHTJBNB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HYNTJBNH, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-07HDT0, DCM HYHTJBNH, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-11KWT0, DCM HNTJBBB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-11KWT0, DCM FNTJHBB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HYNTJHNBN, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HCNTJHNBN, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00KWT0, DCM HCTJHBB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HCNTJHNB, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-00HDT0, DCM HCHTJHNBN, Western Digital 60GB IDE 2.5″ Hard Drive
- WD600VE-75HDT0, DCM HCNTJHNB, Western Digital 60GB IDE 2.5″ Hard Drive
Western Digital WD600VE Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD600VE Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD600VE Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701402-001, 2060-701402-002, 2060-701285-002, 2060-701285-001, etc.
Multiple Model Number revisions:
WD600VE-75HDT1, WD600VE-08HDT0, WD600VE-07HDT0, WD600VE-11KWT0, WD600VE-00KWT0, WD600VE-00HDT0, WD600VE-75HDT0, etc.
