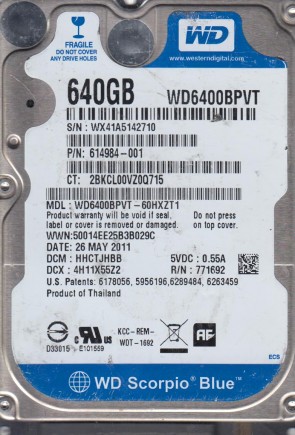

WD6400BPVT Western Digital 2.5″ hard drive with a storage capacity of 640GB and featuring a SATA interface. WD6400BPVT Western Digital Scorpio Blue 640GB 5400RPM SATA 3GB/s 8MB Cache 2.5-inch Internal Hard Drive Disk.
All information about the Western Digital WD6400BPVT hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD6400BPVT Technical Details:
- Hard Disk Model: WDC WD6400BPVT
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 640 GB (640 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Drive Ready Time (typical): 4 seconds
- Average Seek Time: 12 ms
- Track To Track Seek Time: 2 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 100 grams (0.22 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.6 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 500 mA
- Power Required (Seek): 2.5 W
- Power Required (Idle): 2.0 W
- Power Required (Standby): 0.25 W
- Manufacturer: Western Digital Corporation
Western Digital WD6400BPVT Hard Drives:
- WD6400BPVT-60HXZT1, DCM HHCTJHBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-60HXZT1, DCM HBCTJVB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-75HXZT3, DCM HBOTJBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-55HXZT2, DCM HVCTJHB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-00HXZT0, DCM HACTJHBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-55HXZT2, DCM HBCTJBN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-24HXZT1, DCM HHCTJAN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-75HXZT3, DCM EHCTJAB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT3, DCM HBOTJBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT3, DCM HACTJAB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT1, DCM DBCTJHB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT1, DCM HHOTJBN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-80HXZT3, DCM HVOTJBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT3, DCM HBOT2CN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-60HXZT1, DCM HBCTJBBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT3, DCM EHCTJHN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-22HXZT1, DCM HHCVJBBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-80HXZT1, DCM HHCVJBB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-75HXZT3, DCM HHOTJVN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-75HXZT3, DCM HBOT2CN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-75HXZT1, DCM HHOTJHN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-60HXZT3, DCM ECOTJCB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-00HXZT1, DCM HVCVJBN, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-60HXZT3, DCM EAOT2AB, Western Digital 640GB SATA 2.5″ Hard Drive
- WD6400BPVT-55HXZT2, DCM HBOTJHB, Western Digital 640GB SATA 2.5″ Hard Drive
Western Digital WD6400BPVT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD6400BPVT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD6400BPVT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771692-001, 2060-771820-000, 2060-771692-002, 2060-771692-005, 2060-771672-004, etc.
Multiple Model Number revisions:
WD6400BPVT-24HXZT3, WD6400BPVT-80HXZT3, WD6400BPVT-00HXZT3, WD6400BPVT-75HXZT3, WD6400BPVT-24HXZT1, WD6400BPVT-75HXZT1, WD6400BPVT-00HXZT1, WD6400BPVT-60HXZT3, WD6400BPVT-55HXZT3, WD6400BPVT-35HXZT1, WD6400BPVT-22HXZT3, WD6400BPVT-80HXZT1, WD6400BPVT-22HXZT1, WD6400BPVT-60HXZT1, WD6400BPVT-55HXZT2, WD6400BPVT-00HXZT0, etc.
