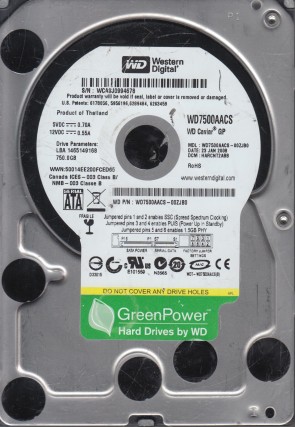

WD7500AACS Western Digital 3.5″ hard drive with a storage capacity of 750GB and featuring a SATA interface. WD7500AACS-00D6B1 Western Digital Caviar Green 750GB 7200RPM SATA 3Gb/s 16MB Cache 3.5-inch Hard Drive.
All information about the Western Digital WD7500AACS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD7500AACS Technical Details:
- Hard Disk Model: WDC WD7500AACS
- Disk Family: Caviar GP
- Form Factor: 3.5″
- Capacity: 750 GB (750 x 1 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 5
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Drive Ready Time (typical): 14.3 seconds
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 630 grams (1.39 pounds)
- Acoustic (Idle): 2.5 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 2.7 Bel
- Power Required (Seek): 7.5 W
- Power Required (Idle): 4.0 W
- Power Required (Standby): 0.97 W
- Manufacturer: Western Digital Corporation
Western Digital WD7500AACS Hard Drives:
- WD7500AACS-00ZJB0, DCM HARCNT2ABB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HARCHV2AAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HBRCHV2AAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM HHNNNT2MBB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B1, DCM HARNNT2MAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B1, DCM HHNNNT2MAN, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM DBNNHT2CFB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-65D6B0, DCM DHNNNT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B1, DCM HANNHT2MFN, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B1, DCM HARNNT2CFB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-65D6B0, DCM HHNNHT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM HANNHT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM HARNHT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-32ZJB0, DCM HARCNV2AAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HARCNV2ABB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-65D6B0, DCM DANNHT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HBRCHT2ABB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HARCHV2ABB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00ZJB0, DCM HARCHT2AAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B1, DCM HHNNHT2MFB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM HARNHT2MAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM DARNHT2MFB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-00D6B0, DCM HHRNNT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-32ZJB0, DCM HARCHV2AAB, Western Digital 750GB SATA 3.5″ Hard Drive
- WD7500AACS-65D6B0, DCM HHNNNT2CAB, Western Digital 750GB SATA 3.5″ Hard Drive
Western Digital WD7500AACS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD7500AACS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD7500AACS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701474-004, 2060-701474-002, 2060-701590-000, 2060-701537-004, etc.
Multiple Model Number revisions:
WD7500AACS-00ZJB0, WD7500AACS-00D6B1, WD7500AACS-00D6B0, WD7500AACS-32ZJB0, WD7500AACS-65D6B0, etc.
