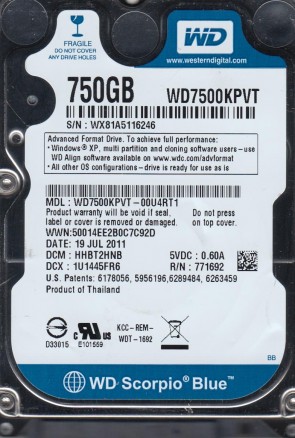

WD7500KPVT Western Digital 2.5″ hard drive with a storage capacity of 750GB and featuring a SATA interface. WD7500KPVT Western Digital Scorpio Blue 750GB 5200RPM SATA-300 (SATA-II) 8MB Cache 7-Pin 2.5-inch Mobile Hard Drive.
All information about the Western Digital WD7500KPVT hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD7500KPVT Technical Details:
- Manufacturer: Western Digital
- Manufacturer Website: www.wdc.com
- Manufacturer Part No: WD7500KPVT-00HT5T0
- Product Series or Family: Scorpio Blue
- Product Type: Internal Hard Drive
- Storage Capacity: 750GB
- Spindle Speed: 5200RPM
- Drive Interface: SATA 3.0Gbps
- Form Factor: 2.5Inch
- Cache: 8MB
Western Digital WD7500KPVT Hard Drives:
- WD7500KPVT-00U4RT1, DCM HHBT2HNB, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00U4RT1, DCM EBMTJHN, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00U4RT1, DCM HHMT2BN, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00HT5T0, DCM HBBVJBBB, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00HT5T0, DCM HHBVJBNB, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00HT5T0, DCM EBBVJBNB, Western Digital 750GB SATA 2.5″ Hard Drive
- WD7500KPVT-00HT5T0, DCM HHBVJHNB, Western Digital 750GB SATA 2.5″ Hard Drive
Western Digital WD7500KPVT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD7500KPVT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD7500KPVT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771692-005, 2060-771672-004, etc.
Multiple Model Number revisions:
WD7500KPVT-00U4RT1, WD7500KPVT-00HT5T0, etc.
