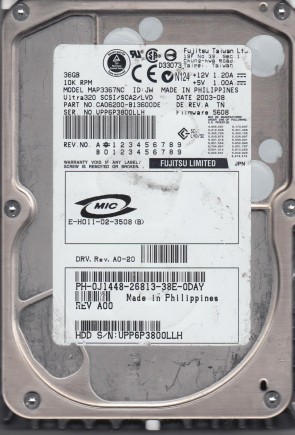

MAP3367NC Fujitsu 3.5″ hard drive with a storage capacity of 36.4GB and featuring a SCSI interface.
All information about the Fujitsu MAP3367NC hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Fujitsu MAP3367NC Technical Details:
- Hard Disk Model: Fujitsu MAP3367NC
- Disk Family: Enterprise MAP Series
- Form Factor: 3.5″
- Capacity: 36 GB (36 740 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 10000 RPM
- Rotation Time: 6.00 ms
- Average Rotational Latency: 2.99 ms
- Disk Interface: Ultra320 SCSI (SCSI 80pin SCA-2)
- Buffer-Host Max. Rate: 320 MB/seconds
- Buffer Size: 8192 KB (8 MB)
- Drive Ready Time (typical): 30 seconds
- Average Seek Time: 4.5 ms
- Track To Track Seek Time: 0.3 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.0 mm (5.75 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 750 grams (1.65 pounds)
- Acoustic (Idle): 3.4 Bel
- Acoustic (Min performance and volume): 3.4 Bel
- Acoustic (Max performance and volume): 3.8 Bel
- Required Power For Spinup: 12V / 5V (Peak 1.20A / 1.00A)
- Power Required (Seek): 12.5 W
- Power Required (Idle): 9.6 W
- Power Required (Standby): 4.0 W
- Manufacturer: Fujitsu Limited
Fujitsu MAP3367NC Hard Drives:
- MAP3367NC, PN CA06200-B13600DE, Fujitsu 36.4GB SCSI 3.5″ Hard Drive
- MAP3367NC, PN CA06200-B15900BA, IBM 36GB SCSI 3.5″ Hard Drive
Fujitsu MAP3367NC Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MAP3367NC Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MAP3367NC Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
CA26314-B64606BA, CA26314-B62406BA, etc.
