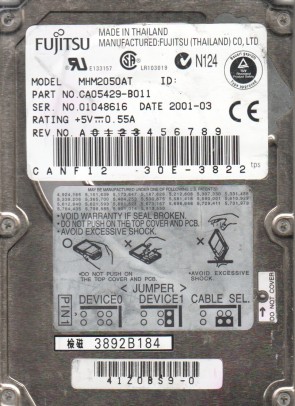

MHM2050AT Fujitsu 2.5″ hard drive with a storage capacity of 5GB and featuring a IDE interface. MHM2050AT Fujitsu 5GB 4200RPM ATA-66 2.5-inch Hard Drive.
All information about the Fujitsu MHM2050AT hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Fujitsu MHM2050AT Technical Details:
- Hard Disk Model: Fujitsu MHM2050AT
- Disk Family: MHM Mobile Series
- Form Factor: 2.5″
- Capacity: 5 GB (5,000,000,000 bytes)
- Rotational Speed: 4200 RPM
- Rotation Time: 14.29 ms
- Average Rotational Latency: 7.14 ms
- Disk Interface: Ultra-ATA/66 (IDE / PATA)
- Buffer-Host Max. Rate: 66.6 MB/second
- Buffer Size: 2048 KB (2 MB)
- Number of Disks (Platters): 1
- Number of Heads: 2
- Width: 70.0 mm (2.76 inch)
- Depth: 100.0 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 99 grams (0.22 pounds)
- Manufacturer: Fujitsu Limited
Fujitsu MHM2050AT Hard Drives:
- MHM2050AT, PN CA05429-B011, Fujitsu 5GB IDE 2.5″ Hard Drive
Fujitsu MHM2050AT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Fujitsu MHM2050AT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Fujitsu MHM2050AT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
CA26264-B10404BA, etc.
