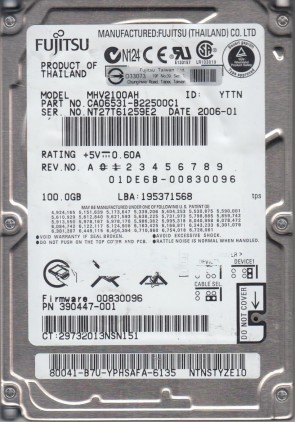

MHV2100AH Fujitsu 2.5″ hard drive with a storage capacity of 100GB and featuring a IDE interface. MHV2100AH Fujitsu Mobile 100GB 5400RPM ATA-100 8MB Cache 2.5-inch Hard Drive.

All information about the Fujitsu MHV2100AH hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Fujitsu MHV2100AH Technical Details:

• Hard Disk Model: FUJITSU MHV2100AH
• Disk Family: –
• Form Factor: 2.5″
• Capacity: 100 GB (100 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 4
• Rotational Speed: 5400 RPM
• Rotation Time: 11.11 ms
• Average Rotational Latency: 5.56 ms
• Disk Interface: Ultra-ATA/100
• Buffer-Host Max. Rate: 100 MB/seconds
• Buffer Size: 8192 KB
• Average Seek Time: 12 ms
• Track To Track Seek Time: 1.5 ms
• Full Stroke Seek Time: 22 ms
• Width: 70 mm (2.76 inch)
• Depth: 100 mm (3.94 inch)
• Height: 9.5 mm (0.37 inch)
• Weight: 101 grams (0.22 pounds)
• Acoustic (Idle): 2.5 Bel
• Required Power For Spinup: 1100 mA
• Power Required (Seek): 2.1 W
• Power Required (Idle): 0.8 W
• Power Required (Standby): 0.13 W
• Manufacturer: Fujitsu Computer Products of America, Inc.

Fujitsu MHV2100AH Hard Drives:

• MHV2100AH, PN CA06531-B22500C1, Fujitsu 100GB IDE 2.5″ Hard Drive
• MHV2100AH, PN CA06531-B20500DL, Fujitsu 100GB IDE 2.5″ Hard Drive
• MHV2100AH PL, PN CA06531-B35500DL, Fujitsu 100GB IDE 2.5″ Hard Drive
• MHV2100AH, PN CA06531-B040, Fujitsu 100GB IDE 2.5″ Hard Drive

Fujitsu MHV2100AH Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Fujitsu MHV2100AH Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Fujitsu MHV2100AH Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
CA26332-B43104BA, etc.
