MHZ2200BH G1 Fujitsu 2.5″ hard drive with a storage capacity of 200GB and featuring a SATA interface. MHZ2200BH Toshiba MHZ2 BH MHZ2200BH 200 GB 2.5 Plug-in Module Hard Drive SATA/300 5400 rpm 8 MB Buffer Hot Swappable.

All information about the Fujitsu MHZ2200BH G1 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Fujitsu MHZ2200BH G1 Technical Details:

• Hard Disk Model: FUJITSU MHZ2200BH
• Disk Family: –
• Form Factor: 2.5″
• Capacity: 200 GB (200 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 3
• Rotational Speed: 5400 RPM
• Rotation Time: 11.11 ms
• Average Rotational Latency: 5.56 ms
• Disk Interface: Serial-ATA/300
• Buffer-Host Max. Rate: 300 MB/seconds
• Buffer Size: 8192 KB
• Average Seek Time: 12 ms
• Track To Track Seek Time: 1.5 ms
• Full Stroke Seek Time: 22 ms
• Width: 70 mm (2.76 inch)
• Depth: 100 mm (3.94 inch)
• Height: 9.5 mm (0.37 inch)
• Weight: 101 grams (0.22 pounds)
• Acoustic (Idle): 2.4 Bel
• Required Power For Spinup: 1000 mA
• Power Required (Seek): 1.9 W
• Power Required (Idle): 0.6 W
• Power Required (Standby): 0.13 W
• Manufacturer: Fujitsu Computer Products of America, Inc.

Fujitsu MHZ2200BH G1 Hard Drives:

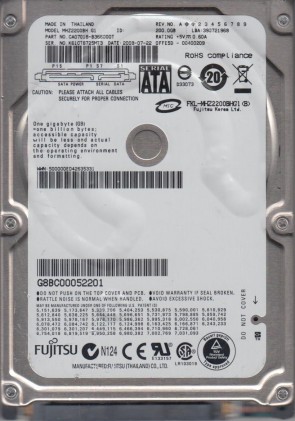

• MHZ2200BH G1, PN CA07018-B366000T, Fujitsu 200GB SATA 2.5″ Hard Drive

Fujitsu MHZ2200BH G1 Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Fujitsu MHZ2200BH G1 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Fujitsu MHZ2200BH G1 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
CA26344-B33104BA, etc.
