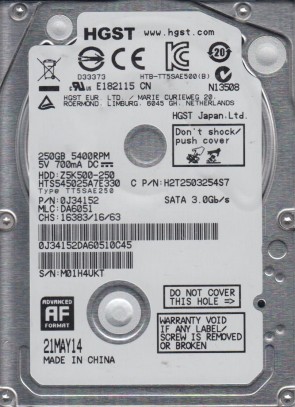

Hitachi HTS545025A7E330

Hitachi HTS545025A7E330 2.5″ hard drive with a storage capacity of 250 GB and featuring a SATA interface. Hitachi HTS545025A7E330 Travelstar Z5K500 250 GB 2.5″ Internal Hard Drive Serial ATA-300 5400 RPM 8 MB Buffer.

All information about the Hitachi HTS545025A7E330 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.

Hitachi HTS545025A7E330 Technical Details:

Manufacturer:

Hitachi (HGST)

Hard Disk Model:

HTS545025A7E330

Disk Family:

Travelstar Z5K500

Form Factor:

2.5″

Capacity:

250 GB (250,000,000,000 bytes)

Formatted Capacity:

Approximately 232 GB

Number Of Disks:

Number Of Heads:

Rotational Speed:

5400 RPM

Average Seek Time:

12.0 ms (read) / 13.0 ms (write)

Disk Interface:

Serial ATA-300 (SATA 3 Gb/s)

Buffer Size:

8192 KB (8 MB)

External Transfer Rate:

300 MB/s

Mean Time Between Failures (MTBF):

500,000 hours

Note: The Hitachi HTS545025A7E330 is part of the Travelstar Z5K500 series, a 7mm slim 2.5″ laptop hard drive line. The Z5K500 series offered capacities up to 500 GB with 5400 RPM spindle speed, designed for ultra-thin notebook computers.

Hitachi HTS545025A7E330 Hard Drives:

HTS545025A7E330 – 250 GB SATA 2.5″ Slim Laptop Hard Drive, Travelstar Z5K500 series
Model code breakdown: HTS54 (Travelstar 5400 RPM) + 5025 (250 GB capacity) + A7E330 (specific variant)
Height: 7mm (slim profile)
Common firmware revisions: J384A00, J384A01
Recommended usage: Ultra-thin laptop replacement, netbook upgrade

Hitachi HTS545025A7E330 Failure Symptoms:

Electrical Failure Symptoms:

Drive is powered, but shows no sign of function;
Clicking sound as the heads search or initialize.

Mechanical Failure Symptoms:

Clicking, grinding sounds;
Drive spins but produces rhythmic clicking – typical of head failure.

Logical Failure Examples:

Accidental deletion, accidental format, file corruption;
File system corruption.

Firmware Failure Symptoms:

Drive powers up but is not recognised;
Drive detected with 0 MB capacity.

Bad Platter Area Symptoms:

Hard disk appears to “hang” or be “sluggish”;
Constant CRC errors.

Complex Failure Model

(A combination of two or more of the above failure types)

Hitachi HTS545025A7E330 Data Recovery & HDD Repair:

This drive has a separate ROM/NVRAM chip on the PCB. When replacing a faulty PCB, you MUST transfer the original ROM chip.

PCB Replacement Information:

To replace a faulty PCB, match the following:

Model number: HTS545025A7E330
PCB part number: Common numbers include 0A57518, 0A57519
Firmware revision: e.g., J384A00, J384A01

⚠️ Critical Note: You MUST transfer the original ROM chip from the old PCB to the new donor board.

Common Failure Scenarios:

Symptom

Likely Cause

Recommended Action

Drive dead (no spin)

PCB failure

Replace PCB; transfer ROM chip

Rhythmic clicking

Head failure

Cleanroom head swap required

Repair Options by Failure Type:

Failure Type

Solution

Requirements

Burnt PCB

Replace PCB; transfer ROM chip

Donor board + soldering

Head failure (clicking)

Head/platter swap

Cleanroom + donor drive

Frequently Asked Questions (FAQs):

Q: What is the height of this drive?
A: 7mm – slim profile for ultra-thin laptops.

Q: My drive clicks. What’s wrong?
A: Clicking indicates head failure. Seek professional data recovery.

User Reviews & Summary:

Final Verdict:
The Hitachi HTS545025A7E330 is a slim legacy laptop drive. For data recovery, seek professional assistance for clicking drives.
