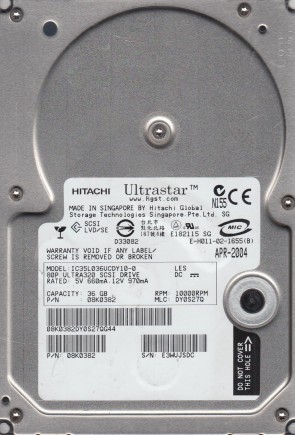

IC35L036UCDY10-0 Hitachi 3.5″ hard drive with a storage capacity of 36GB and featuring a SCSI interface. IC35L036UCDY10 Hitachi Ultrastar 146Z10 36.70 GB Internal Hard Drive Ultra320 SCSI 10000 rpm 8 MB Buffer.

All information about the Hitachi IC35L036UCDY10-0 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Hitachi IC35L036UCDY10-0 Technical Details:

• Hard Disk Model: HITACHI IC35L036UCDY10
• Disk Family: Ultrastar 146Z10
• Form Factor: 3.5″
• Capacity: 36.7 GB (36.7 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 3
• Rotational Speed: 10000 RPM
• Rotation Time: 6.00 ms
• Average Rotational Latency: 3.00 ms
• Disk Interface: Ultra320 SCSI
• Buffer-Host Max. Rate: 320 MB/seconds
• Buffer Size: 8192 KB
• Average Seek Time: 4.7 ms
• Track To Track Seek Time: 0.5 ms
• Full Stroke Seek Time: 10.5 ms
• Width: 101.6 mm (4.00 inch)
• Depth: 146.0 mm (5.75 inch)
• Height: 25.4 mm (1.00 inch)
• Weight: 780 grams (1.72 pounds)
• Acoustic (Idle): 3.1 Bel
• Acoustic (Min performance and volume): 3.2 Bel
• Acoustic (Max performance and volume): 3.4 Bel
• Required Power For Spinup: 2600 mA
• Power Required (Seek): 6.7 W
• Power Required (Idle): 5.4 W
• Power Required (Standby): 1.0 W
• Manufacturer: Hitachi Global Storage Technologies

Hitachi IC35L036UCDY10-0 Hard Drives:

• IC35L036UCDY10-0, PN 08K0382, MLC DY0S27Q, Hitachi 36GB SCSI 3.5″ Hard Drive
• IC35L036UCDY10-0, PN 08K0383, MLC DY0S25J, IBM 36GB SCSI 3.5″ Hard Drive
• IC35L036UCDY10-0, PN 08K0383, MLC DY0S27M, IBM 36GB SCSI 3.5″ Hard Drive
• IC35L036UCDY10-0, PN 08K0312, MLC DY0S27F, Hitachi 36GB SCSI 3.5″ Hard Drive

Hitachi IC35L036UCDY10-0 Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Hitachi IC35L036UCDY10-0 Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Hitachi IC35L036UCDY10-0 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number (3.5″)” or “White Label Number (2.5″)” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple Main Controller IC Number revisions:
47P4864, etc.

Multiple Sticker Number revisions:
07N8659 H69382_, 07N8658 H69382_, etc.
