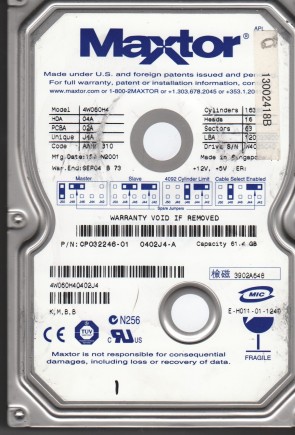

4W060H4 Maxtor 3.5″ hard drive with a storage capacity of 60GB and featuring a IDE interface. 4W060H4 Maxtor DiamondMax 536DX 60GB 5400RPM ATA-100 2MB Cache 3.5-inch Hard Drive.
All information about the Maxtor 4W060H4 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Maxtor 4W060H4 Technical Details:
- Manufacturer: Maxtor
- Manufacturer Website: www.maxtor.seagate.com
- Manufacturer Part No: 4W060H4-041111
- Product Type: Internal Hard Drive
- Storage Capacity: 60GB
- Spindle Speed: 5400RPM
- Drive Interface: ATA/100
- Form Factor: 3.5Inch
- Cache: 2MB
Maxtor 4W060H4 Hard Drives:
- 4W060H4, Code AAH41310, KMBB, Maxtor 60GB IDE 3.5″ Hard Drive
Maxtor 4W060H4 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Maxtor 4W060H4 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Maxtor 4W060H4 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Main Controller IC Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple Main Controller IC Number revisions:
040104600, etc.
Multiple Board Number revisions:
301398100, etc.
