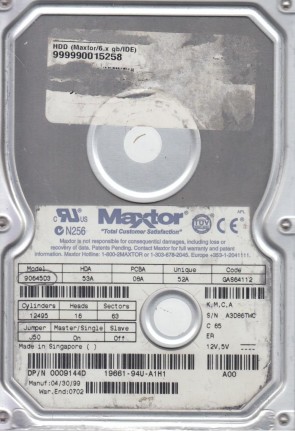

Maxtor 90645D3 3.5″ hard drive with a storage capacity of 6.4 GB and featuring an IDE interface. Maxtor 90645D3 DiamondMax VL 30 6.4 GB 3.5″ Internal Hard Drive IDE Ultra ATA/100 5400 RPM 512 KB Buffer.
All information about the Maxtor 90645D3 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Maxtor 90645D3 Technical Details:
Note: The Maxtor 90645D3 is part of the DiamondMax VL 30 (Value Line) series, released around 2000-2001. This series was designed as an entry-level storage solution for budget-conscious systems and consumer electronics applications, offering capacities up to 30 GB. The “VL” stands for “Value Line”. The 90645D3 represents the entry-level 6.4 GB capacity variant with a single-platter, single-head design. Other models in this series include 31536H2 (15 GB), 32305H3 (23 GB), and 33073H4 (30 GB).
Maxtor 90645D3 Hard Drives:
- 90645D3 – 6.4 GB IDE 3.5″ Hard Drive, DiamondMax VL 30 series
- Model code breakdown: 9 (DiamondMax VL 30 series) + 0645 (6.45 GB capacity) + D3 (IDE interface, 1 head)
- Common firmware revisions: FAK31A11, VAK31A11
- Capacity in LBA: 12,600,000 sectors (approximately)
- PCB part number: 1465, 1480 (Poker series)
- Main controller IC: 040108200 (n256)
Maxtor 90645D3 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize;
- Burnt components on PCB – particularly TVS diodes or the main controller IC.
Mechanical Failure Symptoms:
- Extremely loud noise – “like a jet engine taking off” – a common and distinctive symptom of this drive, typically indicating spindle motor or bearing failure;
- Clicking, grinding sounds (head/media damage);
- Completely quiet due to “motor freeze” (bearing seizure);
- Drive spins but produces rhythmic clicking – typical of head failure;
- Very slow write speeds (copy tasks that should take minutes take hours).
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption, software bugs;
- File system corruption, viruses and malware;
- Partition table loss or MBR corruption;
- DMA-related issues causing kernel panics in Linux systems.
Firmware Failure Symptoms:
- Drive powers up but is not recognised by the computer;
- Drive powers up but is recognised wrongly, sometimes with nonsensical characters;
- Drive freezes during booting up;
- Drive detected with 0 MB capacity (service area corruption).
Bad Platter Area Symptoms:
- Hard disk still accessible but appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors;
- Unable to access folders or files which could be seen;
- Gradual increase of reallocated sector count in SMART data.
Complex Failure Model
(A combination of two or more of the above failure types)
Maxtor 90645D3 Data Recovery & HDD Repair:
When it comes to data recovery, one of the most common problems the Maxtor 90645D3 hard drive experiences is mechanical failure – particularly spindle motor/bearing failure causing extremely loud operational noise. Other common issues include PCB (circuit board) failure due to power surges and firmware corruption.
PCB Replacement Information:
To replace a faulty PCB on a Maxtor 90645D3, you need to match the following:
- Model number: 90645D3
- PCB part number: Common numbers include 1465, 1480 (Poker series)
- Main controller IC number: Often 040108200 (n256)
- Firmware revision: e.g., FAK31A11, VAK31A11
⚠️ Critical Note: Unlike Western Digital drives, the Maxtor 90645D3 does NOT have a separate ROM chip on the PCB. The firmware code is masked inside the main controller (DSP) chip. This means PCB replacement requires an identical donor board – there is no ROM to transfer. Even with a matching PCB, if the drive still clicks, the problem is likely head failure.
Symptom Analysis Based on User Reports:
ide=nodma boot option for temporary accessRepair & Data Recovery Options by Failure Type:
Comparison with Related Maxtor Models (DiamondMax VL 30 Series):
Frequently Asked Questions (FAQs):
Q: Is the Maxtor 90645D3 a 3.5″ or 2.5″ drive?
A: It is a 3.5-inch desktop hard drive.
Q: What is the capacity of the 90645D3?
A: 6.4 GB (approximately 6,450 MB).
Q: What is the RPM and cache size?
A: 5400 RPM and 512 KB cache.
Q: What interface does the 90645D3 use?
A: IDE (PATA) with Ultra ATA/100 support.
Q: What is the DiamondMax VL 30 series?
A: The DiamondMax VL 30 (Value Line) series was Maxtor’s entry-level desktop hard drive line released around 2000-2001, designed for budget-conscious systems and consumer electronics applications. The “VL” stands for “Value Line”, and “30” refers to the maximum capacity of 30 GB. These drives featured 5400 RPM spindle speed and were known for their low cost and adequate performance for basic computing tasks.
Q: Why does my 90645D3 sound like a jet engine?
A: This is a common mechanical failure of the DiamondMax VL 30 series, specifically spindle motor bearing failure. The drive should be backed up immediately if still accessible, as continued use may lead to complete motor seizure.
Q: My drive is extremely slow when writing files. What’s wrong?
A: This is often related to motor aging or speed inconsistency. Users have reported that copying “a few minutes of work” takes hours. This is a sign of impending failure – back up your data and replace the drive.
Q: I’m getting DMA errors / kernel panics in Linux. How can I access my data?
A: Some Linux kernels have compatibility issues with ATA-66/ATA-100 on this drive. Try booting with the ide=nodma option to disable DMA and access the drive in PIO mode. Example: add ide=nodma to your kernel boot line in GRUB.
Q: How do I replace the PCB on a 90645D3?
A: You need a donor board with identical specifications:
– Model: 90645D3
– PCB part number: 1465 or 1480
– Main controller IC: 040108200 (n256)
There is no separate ROM chip to transfer – the donor board must be fully compatible.
Q: What is the difference between 90645D3 and 90648H3?
A: The main difference is likely the interface or head configuration. The “D3” suffix typically indicates a specific IDE configuration with 1 head, while similar model numbers may have different head counts or buffer sizes.
Q: Can the 90645D3 be used with a modern computer?
A: Not directly. You would need a USB-to-IDE adapter or an IDE-to-SATA bridge. Given its age (20+ years) and small capacity (6.4 GB), its practical use is extremely limited – it may be useful for retro computing projects (Windows 95/98/NT/2000 builds).
Q: Is this drive worth buying today?
A: Generally no. This drive is over 20 years old and has known mechanical failure patterns (especially the “jet engine” bearing noise). It may be used for retro computing as a collector’s item, but do not use it to store any important data.
User Reviews & Summary:
Pros (for its time ~2000):
– Single-platter, single-head design – lower mechanical complexity
– 5400 RPM with 9.5 ms seek time – competitive for entry-level drives at launch
– Ultra ATA/100 interface – modern for the era
– 500,000 hour MTBF rating
– Low cost – part of Maxtor’s Value Line series
Cons (by modern standards):
– 6.4 GB capacity is tiny by today’s standards
– IDE interface is completely obsolete
– 512 KB cache is very small
– Known “jet engine” bearing failure
– Very slow write speeds when failing
– DMA compatibility issues with some Linux kernels
– Spare parts are extremely difficult to source
– 20+ years old – high probability of failure
Final Verdict:
The Maxtor 90645D3 is a 6.4 GB model from Maxtor’s DiamondMax VL 30 series, released around 2000-2001. While it was a decent entry-level drive in its time, it is now over 20 years old and has developed a notorious reputation for spindle motor bearing failure – the signature “jet engine” noise. This drive represented Maxtor’s value-oriented segment, competing with Western Digital’s Caviar and Seagate’s U Series in the budget desktop market.
If you still have a working 90645D3 today, it should only be used for retro computing projects (Windows 95/98/2000 builds) as a period-appropriate collector’s item – never store irreplaceable data on it. For data recovery, DIY attempts beyond simple logical recovery have low success rates; professional recovery is strongly recommended for valuable data, especially if the drive is making unusual noises.
Pro Data Recovery Tip: If your 90645D3 is making the “jet engine” noise or clicking, do not repeatedly power cycle the drive. Each power cycle may cause further damage to the spindle bearing or platters, turning a potentially recoverable case into a hopeless one. Power off immediately and consult a professional data recovery service.
