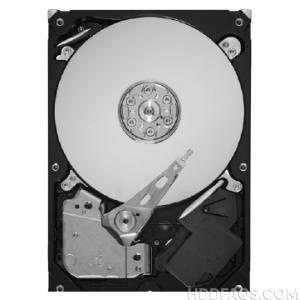

ST1000DL004 Seagate 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface.
All information about the Seagate ST1000DL004 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST1000DL004 Technical Details:
- Disk Family: Barracuda Green
- Type: HDD
- Purpose: desktop
- Form Factor: 3.5″
- Storage Capacity: 1000 GB
- Buffer memory: 32 MB
- Speed of rotation: 5400 rpm
- Disk Interface: SATA 3Gb/s
- External data transfer rate: 300 MB/s
- Support NCQ: yes
- Average access time, reading: 12 MS
- Average access time, record: 13 MS
- The average time delay (Latency): 4.16 msec
- Shock resistance at work: 80 G
- Shock resistance during storage: 300 G
- Noise idle: 21 dB
- Operating noise level: 23 dB
- Dimensions (WxHxL): 101.6×26.1×147 mm
- Weight: 635 g
Seagate ST1000DL004 Hard Drives:
- Seagate Spinpoint F3 ST1000DL004 / HD105SI 1TB 5400 RPM 32MB Cache SATA 3.0Gb/s 3.5″ Internal Hard Drive Bare Drive
Seagate ST1000DL004 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST1000DL004 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST1000DL004 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
BF41-00303A, BF41-00329A, BF41-00353A, etc.
