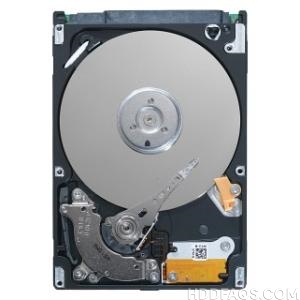

ST160LM003 Seagate 2.5″ hard drive with a storage capacity of 160GB and featuring a SATA interface.
All information about the Seagate ST160LM003 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST160LM003 Technical Details:
- Disk Family: Momentus
- Type: HDD
- Support 4K: yes
- Purpose: laptop
- Form Factor: 2.5″
- Storage Capacity: 160 GB
- Buffer memory: 8 MB
- Speed of rotation: 5400 rpm
- Disk Interface: SATA 3Gb/s
- External data transfer rate: 300 MB/s
- Dimensions (WxHxL): 70×9.5×100 mm
Seagate ST160LM003 Hard Drives:
- seagate Momentus 160GB 5400RPM SATA 3Gbps 8MB Cache 2.5-inch Internal Hard Drive ST160LM003
Seagate ST160LM003 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST160LM003 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST160LM003 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
, etc.
