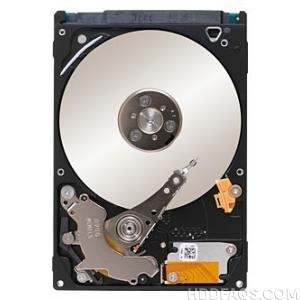

ST160LT015 Seagate 2.5″ hard drive with a storage capacity of 160GB and featuring a SATA interface.
All information about the Seagate ST160LT015 hard disk drive: technical parameters, failure symptoms, HDD PCB repair and recommended retailers.
Seagate ST160LT015 Technical Details:
- Disk Family: Momentus Thin
- Type: HDD
- Purpose: laptop
- Form Factor: 2.5″
- Storage Capacity: 160 GB
- Buffer memory: 16 MB
- Speed of rotation: 7200 rpm
- Disk Interface: SATA 3Gb/s
- External data transfer rate: 300 MB/s
- Support NCQ: yes
- The average time delay (Latency): 4.2 MS
- Shock resistance at work: 350 G
- Shock resistance during storage: 1000 G
- Noise idle: 20 dB
- Operating noise level: 24 dB
- Power consumption: 1.60 W
- Dimensions (WxHxL): 70.1x7x100.55 mm
- Weight: 92 g
Seagate ST160LT015 Hard Drives:
- Seagate Momentus 5400.6 ST160LT015 160GB 5400 RPM 8MB Cache SATA 3.0Gb/s 2.5″ Notebook Hard Drive Bare Drive
Seagate ST160LT015 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to “motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST160LT015 HDD PCB Repair:
When it comes to data recovery one of the most common problems Seagate ST160LT015 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “PCB Number” of your current circuit board in addition to the hard drive’s “Model Number”.
Multiple PCB Number revisions:
, etc.
