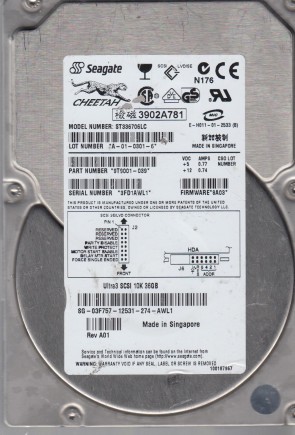

ST336706LC Seagate 3.5″ hard drive with a storage capacity of 36.7GB and featuring a SCSI interface. ST336706LC Seagate Cheetah 36.4GB 10000RPM Ultra-160-80-Pin SCSI 4MB Cache 3.5-inch Low Profile (1.0 inch) Hard Drive.
All information about the Seagate ST336706LC hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST336706LC Technical Details:
- Hard Disk Model: SEAGATE ST336706LC
- Disk Family: Cheetah 36ES 36706
- Form Factor: 3.5″
- Capacity: 36.9 GB (36.9 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 10028 RPM
- Rotation Time: 5.98 ms
- Average Rotational Latency: 2.99 ms
- Disk Interface: Ultra160 SCSI
- Buffer-Host Max. Rate: 160 MB/seconds
- Buffer Size: 4096 KB
- Average Seek Time: 5.2 ms
- Track To Track Seek Time: 0.5 ms
- Full Stroke Seek Time: 6.3 ms
- Width: 101.9 mm (4.01 inch)
- Depth: 146.7 mm (5.78 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 810 grams (1.79 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.9 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 2800 mA
- Power Required (Seek): 12.8 W
- Power Required (Idle): 7.20 W
- Power Required (Standby): 0.80 W
- Manufacturer: Seagate Technology
Seagate ST336706LC Hard Drives:
- ST336706LC, 3FD, SG, PN 9T9001-039, FW 8A03, Seagate 36.7GB SCSI 3.5″ Hard Drive
- ST336706LC, 3FD, PN 9T9001-039, FW 8A03, Seagate 36.7GB SCSI 3.5″ Hard Drive
- ST336706LC, 3FD, PN 9T9001-001, FW 010A, Seagate 36.7GB SCSI 3.5″ Hard Drive
- ST336706LC, 3FD, AMKSPR, PN 9T9001-001, FW 010A, Seagate 36.7GB SCSI 3.5″ Hard Drive
Seagate ST336706LC Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST336706LC Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST336706LC Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100174724-C, 100162872-A, etc.
