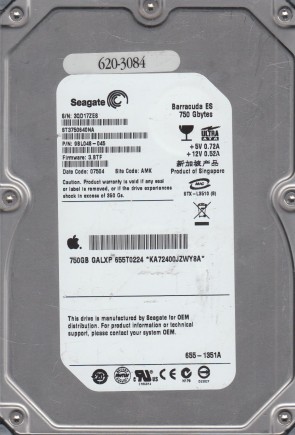

ST3750640NA Seagate 3.5″ hard drive with a storage capacity of 750GB and featuring an IDE interface.
All information about the Seagate ST3750640NA hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST3750640NA Technical Details:
- Hard Disk Model: Seagate ST3750640NA
- Disk Family: DB35.3 (Barracuda 7200.10)
- Form Factor: 3.5″
- Capacity: 750 GB (750 000 000 000 bytes)
- Number Of Disks: 4
- Number Of Heads: 8
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: PATA / IDE
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB (16 MB)
- Drive Ready Time (typical): 10.0 seconds
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 0.8 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.9 mm (5.78 inch)
- Height: 26.1 mm (1.02 inch)
- Weight: 720 grams (1.59 pounds)
- Acoustic (Idle): 2.7 Bel
- Acoustic (Min performance and volume): 2.7 Bel
- Acoustic (Max performance and volume): 2.9 Bel
- Required Power For Spinup: 12V / 5V (Peak 2.8A)
- Power Required (Seek): 12.0 W
- Power Required (Idle): 8.4 W
- Power Required (Standby): 0.8 W
- Manufacturer: Seagate Technology LLC
Seagate ST3750640NA Hard Drives:
- ST3750640NA, 3QD, AMK, PN 9BL048-045, FW 3.BTF, Seagate 750GB IDE 3.5″ Hard Drive
- ST3750640NA, 5QD, WU, PN 9BL048-045, FW 3.BTF, Seagate 750GB IDE 3.5″ Hard Drive
Seagate ST3750640NA Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST3750640NA Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST3750640NA Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100406538, etc.
