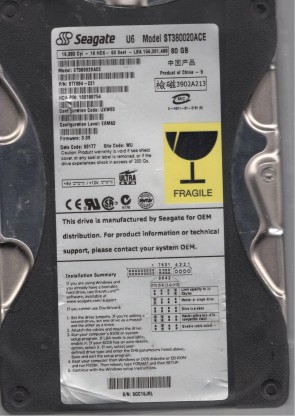

ST38002ACE Seagate 3.5″ hard drive with a storage capacity of 80GB and featuring an IDE interface.
All information about the Seagate ST38002ACE hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Seagate ST38002ACE Technical Details:
- Hard Disk Model: Seagate ST38002ACE
- Disk Family: U Series X (U6)
- Form Factor: 3.5″
- Capacity: 80 GB (80 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Ultra ATA/100 (ATA-5)
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 2048 KB (2 MB)
- Drive Ready Time (typical): 9.0 seconds
- Average Seek Time: 11.0 ms
- Track To Track Seek Time: 1.2 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 146.6 mm (5.77 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 544 grams (1.20 pounds)
- Acoustic (Idle): 2.8 Bel
- Acoustic (Min performance and volume): 2.8 Bel
- Acoustic (Max performance and volume): 3.2 Bel
- Required Power For Spinup: 12V / 5V (Peak 1.8A)
- Power Required (Seek): 6.8 W
- Power Required (Idle): 4.1 W
- Power Required (Standby): 0.9 W
- Manufacturer: Seagate Technology LLC
Seagate ST38002ACE Hard Drives:
- ST38002ACE, 5GC, WU, PN 9T7084-221, FW 3.39, Seagate 80GB IDE 3.5″ Hard Drive
Seagate ST38002ACE Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST38002ACE Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST38002ACE Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100139362, etc.
