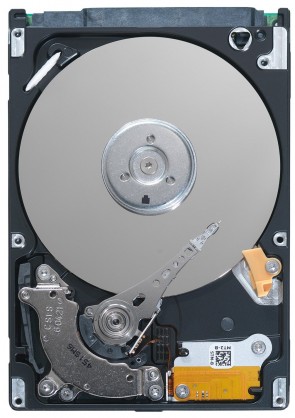

ST9120822A Seagate 2.5″ hard drive with a storage capacity of 120GB and featuring a IDE interface. ST9120822AS Seagate Momentus 120GB 5400RPM SERIAL ATA-150 (SATA) 2.5-inch 8MB Cache Internal H.
All information about the Seagate ST9120822A hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST9120822A Technical Details:
- Hard Disk Model: SEAGATE ST9120822A
- Disk Family: Momentus 5400.3 120822
- Form Factor: 2.5″
- Capacity: 120 GB (120 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 3
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Ultra-ATA/100
- Buffer-Host Max. Rate: 100 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 12.5 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 102 grams (0.22 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST9120822A Hard Drives:
- Seagate ST9120822AS, 5400RPM, 1.5Gp/s, 120GB SATA 2.5″ HDD
- ST9120822AS, 5RM, WU, PN 9S1133-042, FW 3.CAE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-030, FW 3.CDD, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-020, FW 3.BHD, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-022, FW 3.BHE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-032, FW 3.CDE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-308, FW 3.ALC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-508, FW 3.ALC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-506, FW 3.ALB, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-566, FW 3.AXC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822A, 5LZ, WU, PN 9S1033-506, FW 3.ALC, Seagate 120GB IDE 2.5″ Hard Drive
- ST9120822AS, 5MA, WU, PN 9S1133-508, FW 3.ALC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-142, FW 3.ALC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-188, FW 3.ALC, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822A, 5LZ, WU, PN 9S1033-508, FW 3.ALD, Seagate 120GB IDE 2.5″ Hard Drive
- ST9120822AS, 5MA, WU, PN 9S1133-022, FW 3.BHE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5MA, WU, PN 9S1133-031, FW 3.CDE, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-190, FW 3.ALD, Seagate 120GB SATA 2.5″ Hard Drive
- ST9120822AS, 5LZ, WU, PN 9S1133-070, FW 3.CLF, Seagate 120GB SATA 2.5″ Hard Drive
Seagate ST9120822A Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST9120822A Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST9120822A Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100390531, 100398689, etc.
