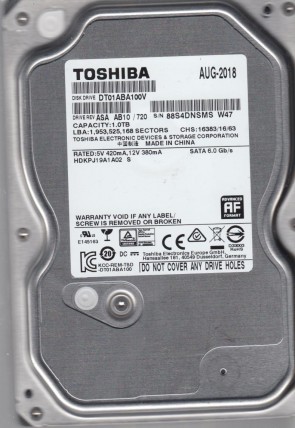

DT01ABA100V Toshiba 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface.
All information about the Toshiba DT01ABA100V hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Toshiba DT01ABA100V Technical Details:
- Hard Disk Model: Toshiba DT01ABA100V
- Disk Family: DT01ABAxxxV Surveillance Series
- Form Factor: 3.5″
- Capacity: 1000 GB (1 000 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5700 RPM
- Rotation Time: 10.53 ms
- Average Rotational Latency: 5.26 ms
- Disk Interface: Serial-ATA/600 (SATA-3 6.0Gbps)
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 32768 KB (32 MB)
- Drive Ready Time (typical): 9.0 seconds
- Average Seek Time: 8.5 ms
- Track To Track Seek Time: 1.0 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147.0 mm (5.79 inch)
- Height: 26.1 mm (1.02 inch)
- Weight: 450 grams (0.99 pounds)
- Acoustic (Idle): 2.2 Bel
- Acoustic (Min performance and volume): 2.2 Bel
- Acoustic (Max performance and volume): 2.4 Bel
- Required Power For Spinup: 12V / 5V (Peak 2.0A)
- Power Required (Seek): 5.7 W
- Power Required (Idle): 3.0 W
- Power Required (Standby): 0.4 W
- Manufacturer: Toshiba Storage Products Division
Toshiba DT01ABA100V Hard Drives:
- DT01ABA100V, AB10/720, HDKPJ19A1A02 S, Toshiba 1TB SATA 3.5″ Hard Drive
- DT01ABA100V, AA10/720, HDKPJ19S0A02 S, Toshiba 1TB SATA 3.5″ Hard Drive
- DT01ABA100V, AA11/720, HDKPJ19E0A02 S, Toshiba 1TB SATA 3.5″ Hard Drive
Toshiba DT01ABA100V Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba DT01ABA100V Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba DT01ABA100V Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
0A90377, etc.
