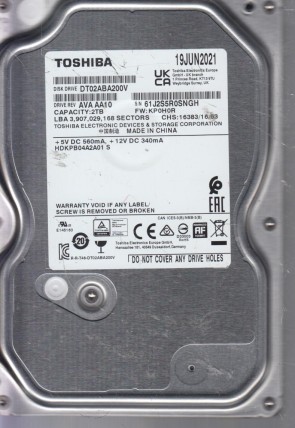

Toshiba DT02ABA200V 3.5″ hard drive with a storage capacity of 2 TB and featuring a SATA interface. Toshiba DT02ABA200V DT02 Series 2 TB 3.5″ Internal Hard Drive Serial ATA-600 5400 RPM 128 MB Cache Surveillance Hard Drive.
All information about the Toshiba DT02ABA200V hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Toshiba DT02ABA200V Technical Details:
Note: The Toshiba DT02ABA200V is part of the DT02 Surveillance series, specifically designed for video surveillance applications such as NVRs and DVRs. This series is optimized for continuous 24/7 operation, offering enhanced reliability with a 1 million hour MTBF and 180 TB/year workload rating. The “V” suffix indicates its surveillance-focused design. Key features include Rotary Vibration (RV) sensors for multi-drive environments and Enhanced Error Recovery Control to prevent drive dropouts in RAID/NVR arrays.
Toshiba DT02ABA200V Hard Drives:
- DT02ABA200V – 2 TB SATA 3.5″ Surveillance Hard Drive, DT02 Series
- Model code breakdown: DT02 (Desktop series 2) + ABA (Advanced Format, 5400 RPM) + 200 (2 TB capacity) + V (Video/Surveillance optimized)
- Common firmware revisions: MS2OA8R0, MS2OA8R2, MX2OABB0
- Capacity in LBA: 3,907,029,168 sectors
- Recommended usage: NVR/DVR systems, video surveillance, 24/7 recording
- Competes with: Western Digital Purple series, Seagate SkyHawk series
Toshiba DT02ABA200V Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize;
- Burnt components on PCB – particularly TVS diodes or the motor controller IC.
Mechanical Failure Symptoms:
- Clicking, grinding sounds (head/media damage);
- Completely quiet due to “motor freeze” (bearing seizure);
- Drive spins but produces rhythmic clicking – typical of head failure;
- Occasional “scraping” sound indicating platter damage;
- High-pitched whine indicating spindle motor issues;
- Vibration-related noises in multi-drive enclosures (RV sensor failure).
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption, software bugs;
- File system corruption, viruses and malware;
- Partition table loss or MBR/GPT corruption;
- “SMART” failure warnings from BIOS or surveillance software;
- Missing video footage due to file system errors.
Firmware Failure Symptoms:
- Drive powers up but is not recognised by the computer/NVR;
- Drive powers up but is recognised wrongly, sometimes with nonsensical characters;
- Drive freezes during booting up;
- Drive detected with 0 MB capacity (service area corruption);
- SMART attributes showing unusual values (e.g., 65535 or 0);
- Drive drops out of RAID array unexpectedly.
Bad Platter Area Symptoms:
- Hard disk still accessible but appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors;
- Unable to access folders or files which could be seen;
- Gradual increase of reallocated sector count in SMART data;
- Pending sector count increasing over time;
- Video playback stuttering or corrupted frames.
Complex Failure Model
(A combination of two or more of the above failure types)
Toshiba DT02ABA200V Data Recovery & HDD Repair:
When it comes to data recovery, one of the most common problems the Toshiba DT02ABA200V hard drive experiences is PCB (circuit board) failure due to power surges, followed by firmware corruption and head failure. Like other modern Toshiba drives, this model has a separate ROM/NVRAM chip that stores drive-specific adaptation data.
PCB Replacement Information:
To replace a faulty PCB on a Toshiba DT02ABA200V, you need to match the following:
- Model number: DT02ABA200V
- PCB part number: Common numbers include G0192A, G0192B, G0192C
- Main controller IC number: Often 88i9335 or similar (Marvell)
- Firmware revision: e.g., MS2OA8R0, MS2OA8R2, MX2OABB0
⚠️ Critical Note: The Toshiba DT02ABA200V has a separate ROM/NVRAM chip (usually 25P10VP or similar) on the PCB. This chip stores drive-specific calibration and adaptive data. When replacing the PCB, you MUST transfer the original ROM chip from the old PCB to the new donor board, or use a programmer to copy the ROM contents. Without this, the drive will not function correctly. Additionally, the RV (Rotary Vibration) sensor data may need calibration after PCB replacement.
Symptom Analysis Based on User Reports:
Repair & Data Recovery Options by Failure Type:
Comparison with Related Toshiba Models:
Frequently Asked Questions (FAQs):
Q: Is the Toshiba DT02ABA200V a 3.5″ or 2.5″ drive?
A: It is a 3.5-inch surveillance hard drive.
Q: What is the capacity of the DT02ABA200V?
A: 2 TB (2,000,000,000,000 bytes). The formatted capacity is approximately 1.82 TB.
Q: What is the RPM and cache size?
A: 5400 RPM and 128 MB cache.
Q: What interface does the DT02ABA200V use?
A: Serial ATA (SATA) with SATA-600 (6 Gb/s) support.
Q: What makes the DT02ABA200V different from a standard desktop drive?
A: The DT02ABA200V is specifically optimized for surveillance applications with:
– 24/7 continuous operation rating
– 1,000,000 hour MTBF (vs ~500,000 for desktop drives)
– 180 TB/year workload rating
– Rotary Vibration (RV) sensors for multi-drive environments
– Enhanced Error Recovery Control to prevent NVR dropouts
– ATA streaming commands for smooth video recording
Q: What does the model number DT02ABA200V mean?
A: The model number breaks down as:
– DT02 = Desktop series 2
– ABA = Advanced Format, 5400 RPM
– 200 = 2 TB capacity (200 = 2.00 TB)
– V = Video/Surveillance optimized
Q: Can I use this drive as a regular desktop drive?
A: Yes, the DT02ABA200V can be used as a standard desktop drive. However, its firmware is optimized for sequential writes (video streaming) rather than random read/write performance. For general desktop use, the DT01ACA series (7200 RPM) would provide better performance. The surveillance drives work best as data/log storage drives, not as OS boot drives.
Q: My drive is dead and doesn’t spin. Can I replace the PCB myself?
A: Yes, but with important caveats. You need a donor PCB with:
– Identical model number (DT02ABA200V)
– Identical PCB part number (e.g., G0192A, G0192B, G0192C)
– Similar firmware revision
You MUST transfer the original ROM chip (usually an 8-pin IC labeled 25P10VP or similar) from the old PCB to the new donor board, or copy its contents using a programmer. Without this, the drive will not work correctly.
Q: My DT02ABA200V clicks rhythmically and is not detected. What’s wrong?
A: Rhythmic clicking (usually 5-10 clicks followed by motor stop) is a classic symptom of head failure. The heads cannot read the servo tracks or firmware from the platters. This requires a cleanroom head swap performed by a professional data recovery service.
Q: Can I recover data from a DT02ABA200V with bad sectors?
A: Yes, you can try using ddrescue on Linux to create a disk image, skipping bad sectors. However, if the drive has physical damage (clicking, grinding), do not run ddrescue – seek professional help immediately. For surveillance drives, it’s common to have file system corruption in addition to physical issues.
Q: Is the DT02ABA200V compatible with RAID/NVR systems?
A: Yes, this drive includes Rotary Vibration (RV) sensors specifically designed for multi-drive environments. It also features Enhanced Error Recovery Control which prevents the drive from entering deep recovery cycles that would cause it to drop out of a RAID array – a critical feature for NVR and RAID systems.
Q: What is the power consumption of this drive?
A: The DT02ABA200V typically consumes:
– Read/Write: ~4.8 W
– Idle: ~3.5 W
– Standby/Sleep: ~0.7 W
Q: Is this drive worth buying today?
A: For surveillance system installations, yes – this drive remains a solid choice for 2 TB NVR/DVR builds. However, for new surveillance systems, consider higher capacity models (4 TB+) for longer retention. Used units should be tested with SMART diagnostics and checked for power-on hours and reallocated sector counts before deployment in critical installations.
User Reviews & Summary:
Pros:
– Designed for 24/7 surveillance operation
– 1,000,000 hour MTBF – excellent reliability
– 180 TB/year workload rating – suitable for continuous recording
– RV (Rotary Vibration) sensors – stable in multi-drive enclosures
– Enhanced Error Recovery – prevents RAID/NVR dropouts
– 128 MB cache – smooth video streaming
– Low power consumption – ideal for always-on systems
– Quiet operation – suitable for office environments
Cons:
– 5400 RPM – slower than 7200 RPM surveillance alternatives
– Not optimized for random read/write workloads
– 2 TB capacity may be limiting for modern high-resolution cameras
– Consumer-grade drive – not recommended for enterprise servers
– May require configuration in some NVRs
Final Verdict:
The Toshiba DT02ABA200V is a 2 TB, 5400 RPM surveillance-optimized hard drive from Toshiba’s DT02 series. It is specifically designed for video surveillance applications including NVRs, DVRs, and home security systems. Key differentiators include a 1 million hour MTBF, 180 TB/year workload rating, Rotary Vibration sensors, and Enhanced Error Recovery Control.
This drive is an excellent choice for:
– Home and small business security camera systems
– NVR (Network Video Recorder) installations
– DVR (Digital Video Recorder) upgrades
– 24/7 continuous recording applications
– Multi-drive surveillance arrays
If you still have a working DT02ABA200V today, it remains a capable surveillance drive. However, always monitor SMART attributes (especially Reallocated Sector Count and Current Pending Sector Count) and replace drives showing signs of failure. For new surveillance installations, consider higher capacity options (4 TB, 6 TB) from the same DT02 series based on your retention requirements.
Pro Data Recovery Tip: If your DT02ABA200V is clicking or not detected, do not repeatedly power cycle the drive. Each power cycle may cause further platter damage. For surveillance drives, it’s also worth checking if the NVR’s power supply is stable – many surveillance drive failures are caused by inadequate or failing NVR power supplies. Always backup critical footage before attempting any DIY repair procedures.
