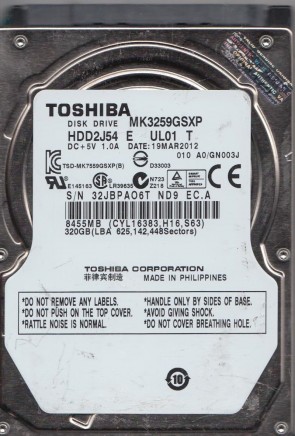

MK3259GSX Toshiba 2.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface.
All information about the Toshiba MK3259GSX hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Toshiba MK3259GSX Technical Details:
- Hard Disk Model: Toshiba MK3259GSX
- Disk Family: MKxx59GSX Series
- Form Factor: 2.5″
- Capacity: 320 GB (320 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: Serial-ATA/300 (SATA-2 3.0Gbps)
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB (8 MB)
- Drive Ready Time (typical): 4.0 seconds
- Average Seek Time: 12.0 ms
- Track To Track Seek Time: 1.5 ms
- Width: 69.8 mm (2.75 inch)
- Depth: 100.0 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 98 grams (0.22 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.4 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 5V (Peak 1.0A)
- Power Required (Seek): 1.5 W
- Power Required (Idle): 0.55 W
- Power Required (Standby): 0.15 W
- Manufacturer: Toshiba Corporation
Toshiba MK3259GSX Hard Drives:
- MK3259GSXP, A0/GN003J, HDD2J54 E UL01 T, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSXP, A0/GT001H, HDD2J54 S QG01 B, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSXP, A0/GN003J, HDD2J54 E UL01 B, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSXP, A0/GN001A, HDD2J54 A SL01 T, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSX, A0/GK004G, HDD2H93 T ZK01 S, Toshiba 320GB SATA 2.5″ Hard Drive
- Toshiba MK3259GSXP, 5400RPM, 3.0 Gp/s, 320GB SATA 2.5″ HDD
- MK3259GSXP, A0/GN003J, HDD2J54 E UL01 S, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSX, B0/GK003U, HDD2H93 Z ZK01 S, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSXP, A0/GN001U, HDD2J54 Z SL01 T, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSX, B0/GK003U, HDD2H93 Z ZK01 T, Toshiba 320GB SATA 2.5″ Hard Drive
- MK3259GSX, A0/GK003A, HDD2H93 C SL01, Toshiba 320GB SATA 2.5″ Hard Drive
Toshiba MK3259GSX Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba MK3259GSX Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba MK3259GSX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
G002825A, G002641A, etc.
