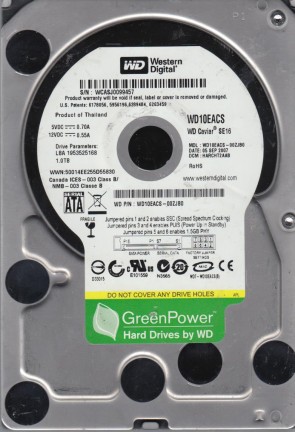

WD10EACS Western Digital 3.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD10EACS-22D6B1 Western Digital 1TB 7200RPM SATA 3Gb/s 3.5-inch Hard Drive.

All information about the Western Digital WD10EACS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Western Digital WD10EACS Technical Details:

• Hard Disk Model: WDC WD10EACS
• Disk Family: Caviar GP
• Form Factor: 3.5″
• Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
• Number Of Disks: 3
• Number Of Heads: 6
• Disk Interface: Serial-ATA/300
• Buffer-Host Max. Rate: 300 MB/seconds
• Buffer Size: 16384 KB
• Width: 101.6 mm (4.00 inch)
• Depth: 147 mm (5.79 inch)
• Height: 26.1 mm (1.03 inch)
• Weight: 730 grams (1.61 pounds)
• Acoustic (Idle): 2.5 Bel
• Acoustic (Min performance and volume): 2.5 Bel
• Acoustic (Max performance and volume): 2.7 Bel
• Power Required (Seek): 7.5 W
• Power Required (Idle): 4.0 W
• Power Required (Standby): 0.97 W
• Manufacturer: Western Digital Corporation

Western Digital WD10EACS Hard Drives:

• WD10EACS-00ZJB0, DCM HARCHT2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B1, DCM HANNNT2MAN, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-14ZJB0, DCM HARCNV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00ZJB0, DCM HBRCHT2ABB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-32ZJB0, DCM HARCV2AA, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-32D6B1, DCM DBRNNT2MFN, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00C7B0, DCM HATCHV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00ZJB0, DCM HBRCHT2AB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-32D6B1, DCM HHNNNT2CFN, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-22D6B0, DCM DHRNHT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B0, DCM DARNHT2CBB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00ZJB0, DCM HARCNT2AAN, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-07D6B0, DCM DHNNNT2MFB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B0, DCM HARNHT2MAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B0, DCM HARNHT2CBB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B1, DCM HHNNNT2MFB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B1, DCM HHRNHT2MB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00C7B0, DCM HBRCNV2ABB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-22D6B0, DCM HHRNT2CFB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-11BHUB0, DCM HHNNHTJMHB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-07D6B0, DCM HHNNNT2CFB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00D6B1, DCM HHRNNT2CF, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-32ZJB0, DCM HARCNV2AAB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-32ZJB0, DCM HBRCNV2ABB, Western Digital 1TB SATA 3.5″ Hard Drive
• WD10EACS-00ZJB0, DCM HARCHT2AB, Western Digital 1TB SATA 3.5″ Hard Drive

Western Digital WD10EACS Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Western Digital WD10EACS Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Western Digital WD10EACS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
2060-771698-002, 2060-701474-004, 2060-701474-002, 2060-701314-002, 2060-701590-000, 2060-701537-004, etc.

Multiple Model Number revisions:
WD10EACS-32D6B1, WD10EACS-11BHUB0, WD10EACS-65ZJB0, WD10EACS-07D6B0, WD10EACS-00ZJB0, WD10EACS-22D6B0, WD10EACS-14ZJB0, WD10EACS-00C7B0, WD10EACS-32ZJB0, WD10EACS-65D6B0, WD10EACS-00D6B0, WD10EACS-00D6B1, etc.
