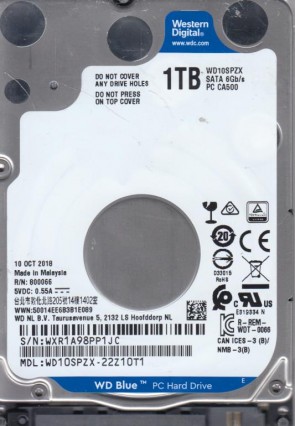

WD10SPZX Western Digital 2.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD10SPZX Western Digital Blue 1TB 5400RPM SATA 128MB Cache 2.5-inch Hard Drive.

All information about the Western Digital WD10SPZX hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Western Digital WD10SPZX Technical Details:

• Hard Disk Model: WDC WD10SPZX
• Disk Family: Blue
• Form Factor: 2.5″
• Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
• Rotational Speed: 5400 RPM
• Rotation Time: 11.11 ms
• Average Rotational Latency: 5.56 ms
• Disk Interface: Serial-ATA/600
• Buffer-Host Max. Rate: 600 MB/seconds
• Buffer Size: 131072 KB
• Width: 69.97 mm (2.75 inch)
• Depth: 100.2 mm (3.94 inch)
• Height: 7 mm (0.28 inch)
• Weight: 90 grams (0.20 pounds)
• Manufacturer: Western Digital Corporation

Western Digital WD10SPZX Hard Drives:

• WD10SPZX-22Z10T1, DCM , Western Digital 1TB SATA 2.5″ Hard Drive
• Unlocked WD10SPZX-75Z10T2, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-11Z10T0, DCM , Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-60Z10T0, DCM , Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T0, DCM HBNT2HB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HANT2AN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HBNT2HN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-75Z10T0, DCM HBNT2HK, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HANT2HB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T1, DCM HHNT2HNB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T0, DCM HANT2HB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HBNT2BN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T0, DCM HBNT2HK, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-22Z10T0, DCM EHNT2HB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T1, DCM HANT2BBB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HANT2HN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-21Z10T0, DCM HHNT2AK, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T1, DCM HBNT2AN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T1, DCM HANT2HN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-22Z10T1, DCM HHNT2AN, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-24Z10T0, DCM HANT2AB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-00Z10T0, DCM , Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-00Z10T0, DCM EANT2BB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-00Z10T0, DCM HANT2BB, Western Digital 1TB SATA 2.5″ Hard Drive
• WD10SPZX-75Z10T1, DCM HHNT2BN, Western Digital 1TB SATA 2.5″ Hard Drive

Western Digital WD10SPZX Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Western Digital WD10SPZX Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Western Digital WD10SPZX Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
2060-800066-006, 2060-800066-006, 2060-800066-002, 2060-800066-004, etc.

Multiple Model Number revisions:
WD10SPZX-75Z10T2, WD10SPZX-11Z10T0, WD10SPZX-75Z10T0, WD10SPZX-22Z10T1, WD10SPZX-60Z10T0, WD10SPZX-24Z10T0, WD10SPZX-24Z10T1, WD10SPZX-75Z10T1, WD10SPZX-17Z10T1, WD10SPZX-22Z10T0, UNLOCKED, WD10SPZX-21Z10T0, WD10SPZX-21Z10T0, WD10SPZX-00Z10T0, etc.
