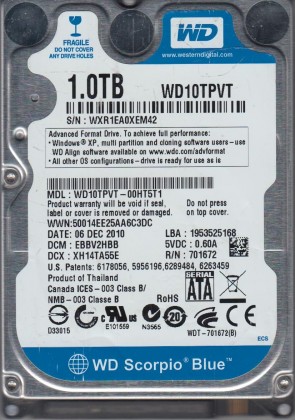

WD10TPVT Western Digital 2.5″ hard drive with a storage capacity of 1TB and featuring a SATA interface. WD10TPVT Western Digital Scorpio Blue 1TB 5200RPM SATA 3GB/s 8MB Cache 2.5-inch Internal Laptop Hard Drives.
All information about the Western Digital WD10TPVT hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD10TPVT Technical Details:
- Hard Disk Model: WDC WD10TPVT
- Disk Family: Scorpio Blue
- Form Factor: 2.5″
- Capacity: 1 TB (1 x 1 000 000 000 000 bytes)
- Number Of Disks: 3
- Number Of Heads: 6
- Rotational Speed: 5200 RPM
- Rotation Time: 11.54 ms
- Average Rotational Latency: 5.77 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Drive Ready Time (typical): 8 seconds
- Average Seek Time: 12 ms
- Track To Track Seek Time: 2 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 12.5 mm (0.49 inch)
- Weight: 150 grams (0.33 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 2.5 Bel
- Required Power For Spinup: 975 mA
- Power Required (Seek): 1.4 W
- Power Required (Idle): 0.59 W
- Power Required (Standby): 0.18 W
- Manufacturer: Western Digital Corporation
Western Digital WD10TPVT Hard Drives:
- WD10TPVT-00HT5T1, DCM EBBV2HBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-11U4RT1, DCM EBMTJBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-11U4RT1, DCM HBMTJHB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-11U4RT1, DCM HBMTJBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM HHBVJHHB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T1, DCM HBBVJBBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMTJBBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMTJHNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T1, DCM HBBV2HNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM EHBVJBNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM HBBVJBBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM EHBVJBBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM HBBVJBNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HHMTJBNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM EHMT2BBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMT2HBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM EBMT2BNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMT2HNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM EBMTJBNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HHMT2HNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMTJHBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM HBMT2HN, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T1, DCM HBBV2BBB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00U4RT1, DCM EBMTJHNB, Western Digital 1TB SATA 2.5″ Hard Drive
- WD10TPVT-00HT5T0, DCM HHBVJBNB, Western Digital 1TB SATA 2.5″ Hard Drive
Western Digital WD10TPVT Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD10TPVT Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD10TPVT Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771692-005, 2060-771672-004, etc.
Multiple Model Number revisions:
WD10TPVT-11U4RT1, WD10TPVT-00HT5T1, WD10TPVT-00U4RT1, WD10TPVT-00HT5T0, etc.
