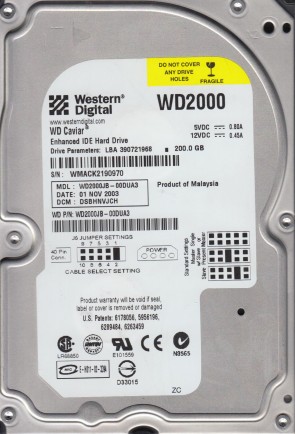

WD2000JB Western Digital 3.5″ hard drive with a storage capacity of 200GB and featuring a SATA interface. WD2000JB-57REA0 Western Digital 200GB 7200RPM ATA-100 3.5-inch Hard Drive.

All information about the Western Digital WD2000JB hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Western Digital WD2000JB Technical Details:

• Hard Disk Model: WDC WD2000JB
• Disk Family: Caviar SE
• Form Factor: 3.5″
• Capacity: 200 GB (200 x 1 000 000 000 bytes)
• Number Of Disks: 1
• Number Of Heads: 2
• Rotational Speed: 7200 RPM
• Rotation Time: 8.33 ms
• Average Rotational Latency: 4.17 ms
• Disk Interface: Ultra-ATA/100
• Buffer-Host Max. Rate: 100 MB/seconds
• Buffer Size: 8192 KB
• Drive Ready Time (typical): 7 seconds
• Average Seek Time: 8.9 ms
• Track To Track Seek Time: 2.0 ms
• Full Stroke Seek Time: 21.0 ms
• Width: 101.6 mm (4.00 inch)
• Depth: 147 mm (5.79 inch)
• Height: 26.1 mm (1.03 inch)
• Weight: 600 grams (1.32 pounds)
• Acoustic (Idle): 2.8 Bel
• Acoustic (Min performance and volume): 2.9 Bel
• Acoustic (Max performance and volume): 3.3 Bel
• Required Power For Spinup: 980 mA
• Power Required (Seek): 8.6 W
• Power Required (Idle): 8.1 W
• Power Required (Standby): 1.1 W
• Manufacturer: Western Digital Corporation

Western Digital WD2000JB Hard Drives:

• WD2000JB-00DUA3, DCM DSBHNVJCH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00FUA0, DCM HSBHCTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00EVA0, DCM HSBHCVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00GVA0, DCM HSBHCTJAA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-53EVA0, DCM DSBACVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00DUA3, DCM HSBHNVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00GVA0, DCM DSCHCTJAA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00GVA0, DCM DSBHNTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-55GVA0, DCM DSBACTJAA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-55GVA0, DCM DSBACTJAA, Western Digital 200GB SATA 3.5″ Hard Drive
• WD2000JB-00EVA0, DCM HSCHCVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00GVC0, DCM HSCACTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-55GVA0, DCM HSBHNTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-19GVC0, DCM HSBHCTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00GVA0, DCM DSBACTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00EVA0, DCM DSBHCVJAA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-34EVA0, DCM HSCACTJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00FUA0, DCM HSBHCVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-00DUA1, DCM DSBHNVJAA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-55GVA0, DCM DSBHCTJAH, Western Digital 200GB SATA 3.5″ Hard Drive
• WD2000JB-00DUA3, DCM DSBANVJCA, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-32EVA0, DCM HSBHCVJAH, Western Digital 200GB IDE 3.5″ Hard Drive
• WD2000JB-53EVA0, DCM HSBHCVJAH, Western Digital 200GB IDE 3.5″ Hard Drive

Western Digital WD2000JB Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Western Digital WD2000JB Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Western Digital WD2000JB Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
2060-701265-001, 2060-701266-001, 2060-001265-001, 2060-001160-001, 2060-001179-003, etc.

Multiple Model Number revisions:
WD2000JB-00GVC0, WD2000JB-19GVC0, WD2000JB-00GVA0, WD2000JB-00EVA0, WD2000JB-34EVA0, WD2000JB-00FUA0, WD2000JB-00DUA1, WD2000JB-55GVA0, WD2000JB-00DUA3, WD2000JB-32EVA0, WD2000JB-53EVA0, etc.
