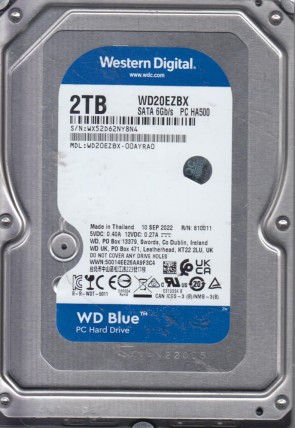

Western Digital WD20EZBX 3.5″ hard drive with a storage capacity of 2 TB and featuring a SATA interface. Western Digital WD20EZBX Blue 2 TB 3.5″ Internal Hard Drive Serial ATA-600 5400 RPM 256 MB Buffer.
All information about the Western Digital WD20EZBX hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Western Digital WD20EZBX Technical Details:
Note: The Western Digital WD20EZBX is part of the Blue series, WD’s mainstream desktop hard drive line offering 2 TB capacity with 5400 RPM and large 256 MB cache.
Western Digital WD20EZBX Hard Drives:
- WD20EZBX – 2 TB SATA 3.5″ Desktop Hard Drive, Blue series
- Model code breakdown: WD (Western Digital) + 20 (2 TB capacity) + EZBX (Blue variant)
- Common firmware revisions: J384A00, J384A01
- Advanced Format: 512e (4K physical sectors)
- Recommended usage: Desktop storage, external enclosures, backup drives
Western Digital WD20EZBX Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Clicking sound as the heads search or initialize.
Mechanical Failure Symptoms:
- Clicking, grinding sounds;
- Drive spins but produces rhythmic clicking – typical of head failure.
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption;
- File system corruption.
Firmware Failure Symptoms:
- Drive powers up but is not recognised;
- Drive detected with 0 MB capacity.
Bad Platter Area Symptoms:
- Hard disk appears to “hang” or be “sluggish”;
- Constant CRC errors.
Complex Failure Model
(A combination of two or more of the above failure types)
Western Digital WD20EZBX Data Recovery & HDD Repair:
This WD drive has a separate ROM/NVRAM chip. When replacing a faulty PCB, you MUST transfer the original ROM chip.
PCB Replacement Information:
To replace a faulty PCB, match the following:
- Model number: WD20EZBX
- PCB part number: Common numbers include 2060-810027-000, 2060-810028-000
- Firmware revision: e.g., J384A00, J384A01
⚠️ Critical Note: You MUST transfer the original ROM chip from the old PCB to the new donor board.
Common Failure Scenarios:
Repair Options by Failure Type:
Frequently Asked Questions (FAQs):
Q: What is the capacity?
A: 2 TB (approximately 1.81 TB formatted).
Q: What is the cache size?
A: 256 MB – large cache for desktop performance.
Q: My drive clicks. What’s wrong?
A: Clicking indicates head failure. Seek professional data recovery.
User Reviews & Summary:
Final Verdict:
The Western Digital WD20EZBX is a mainstream desktop Blue drive with 256 MB cache.
