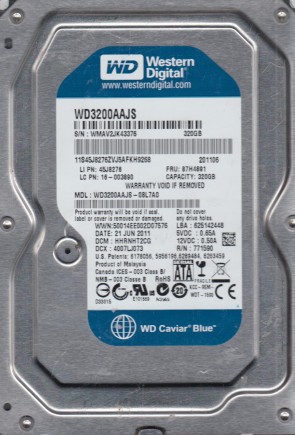

WD3200AAJS Western Digital 3.5″ hard drive with a storage capacity of 320GB and featuring a SATA interface. WD3200AAJS-61B4A0 Western Digital 320GB 7200RPM SATA 3Gb/s 3.5-inch Hard Drive.
All information about the Western Digital WD3200AAJS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD3200AAJS Technical Details:
- Hard Disk Model: WDC WD3200AAJS
- Disk Family: Caviar SE
- Form Factor: 3.5″
- Capacity: 320 GB (320 x 1 000 000 000 bytes)
- Number Of Disks: 1
- Number Of Heads: 2
- Rotational Speed: 7200 RPM
- Rotation Time: 8.33 ms
- Average Rotational Latency: 4.17 ms
- Disk Interface: Serial-ATA/300
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 8192 KB
- Average Seek Time: 8.9 ms
- Track To Track Seek Time: 2 ms
- Full Stroke Seek Time: 21 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 25.4 mm (1.00 inch)
- Weight: 600 grams (1.32 pounds)
- Acoustic (Idle): 2.6 Bel
- Acoustic (Min performance and volume): 2.8 Bel
- Acoustic (Max performance and volume): 2.8 Bel
- Required Power For Spinup: 1055 mA
- Power Required (Seek): 7.8 W
- Power Required (Idle): 7.2 W
- Power Required (Standby): 0.97 W
- Manufacturer: Western Digital Corporation
Western Digital WD3200AAJS Hard Drives:
- WD3200AAJS-08L7A0, DCM HHRNHT2CG, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM DANNHTJCH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-65M0A0, DCM HARNHT2CH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM HANNHT2CH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-60Z0A0, DCM HHRNNTJCG, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22VWA0, DCM HHNNHTJCH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM HHNNNT2AGN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22L7A0, DCM DANNHT2AEN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM HGRNHTJCH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22RYA0, DCM HBRCNV2ABN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22L7A0, DCM HBNNHTJCH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-65B4A0, DCM DGNNHTJCG, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-40RYA0, DCM HBNCNAJABN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-40VWA1, DCM HBRNHTJMBN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-65RYA0, DCM HARCHV2AAN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM HBRNHT2CG, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-56M0A0, DCM HGRNHT2CH, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00B4A0, DCM HARNHTJABN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-40H3A1, DCM HHNNNHT2ABN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22L7A0, DCM HBNNNT2AHN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-00L7A0, DCM HBRNNT2AGN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22RYA0, DCM EANCHA2MBN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22RYA0, DCM HARCHVJCHN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-40RYA0, DCM HANCHAJCAN, Western Digital 320GB SATA 3.5″ Hard Drive
- WD3200AAJS-22RYA0, DCM HARCHA2CAN, Western Digital 320GB SATA 3.5″ Hard Drive
Western Digital WD3200AAJS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD3200AAJS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD3200AAJS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701590-000, 2060-771577-001, 2060-701640-002, 2060-771590-001, 2060-701590-001, 2060-701537-002, 2060-701444-003, 2060-701578-001, 2060-701444-004, 2060-701537-003, etc.
Multiple Model Number revisions:
WD3200AAJS, WD3200AAJS-56B4A0, WD3200AAJS-40H3A2, WD3200AAJS-00M0A0, WD3200AAJS-40VWA1, WD3200AAJS-60Z0A0, WD3200AAJS-55RYA0, WD3200AAJS-41VWA1, WD3200AAJS-61B4A0, WD3200AAJS-56M0A0, WD3200AAJS-00VWA0, WD3200AAJS-22L7A0, WD3200AAJS-40H3A0, WD3200AAJS-08B4A0, WD3200AAJS-22VWA0, WD3200AAJS-40RYA0, WD3200AAJS-65VWA0, WD3200AAJS-40H3A1, WD3200AAJS-00RYA0, WD3200AAJS-65RYA0, WD3200AAJS-00YZCA0, WD3200AAJS-00L7A0, WD3200AAJS-22B4A0, WD3200AAJS-08L7A0, WD3200AAJS-60M0A1, WD3200AAJS-65M0A0, WD3200AAJS-55VWA0, WD3200AAJS-65B4A0, WD3200AAJS-60M0A0, WD3200AAJS-00B4A0, WD3200AAJS-22RYA0, WD3200AAJS-00G0A0, WD3200AAJS-40VWA0, etc.
