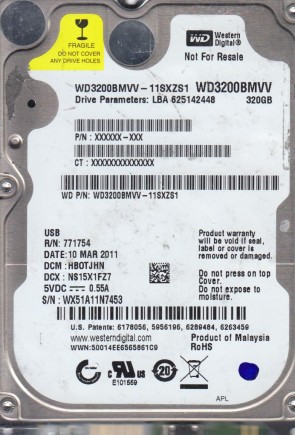

WD3200BMVV Western Digital 2.5″ hard drive with a storage capacity of 320GB and featuring a USB interface. WD3200BMVV Western Digital 320GB 5400RPM USB 2.0 2.5-inch Internal Hard Drive.
All information about the Western Digital WD3200BMVV hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Western Digital WD3200BMVV Technical Details:
- Hard Disk Model: WDC WD3200BMVV
- Disk Family: Elements/Passport
- Form Factor: 2.5″
- Capacity: 320 GB (320 x 1 000 000 000 bytes)
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: USB 2.0
- Buffer-Host Max. Rate: 60 MB/seconds
- Buffer Size: 8192 KB
- Manufacturer: Western Digital Corporation
Western Digital WD3200BMVV Hard Drives:
- WD3200BMVV-11SXZS1, DCM HBOTJHN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM HVNTJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM HBNVJHBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM EHNTJVN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM HANTJHN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HHNTJBN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11SXZS1, DCM HAOTJAB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HHNTJHN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM HANTJVB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A9MS0, DCM HEBVJHBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11DCLS0, DCM HHBVJHNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HBNTJBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A9MS0, DCM HHBVJANB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HBCVJBN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11DCLS0, DCM HEBVJHNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM HHNTJHNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM DHNT2BBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HBBTJBBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11GNWS0, DCM HBNTJAN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM HANT2HBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM DANTJBNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM DANT2HNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM EBNTJBN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1CS0, DCM HANTJHN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVV-11A1PS0, DCM HHNTJABB, Western Digital 320GB USB 2.5″ Hard Drive
Western Digital WD3200BMVV Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD3200BMVV Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD3200BMVV Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-701675-002, 2060-701350-000, 2060-771754-000, 2060-771574-000, 2060-701675-001, 2060-701675-004, 2060-701650-000, etc.
Multiple Model Number revisions:
WD3200BMVV-11A1CS0, WD3200BMVV-11GNWS0, WD3200BMVV-11SXZS1, WD3200BMVV-11DCLS0, WD3200BMVV-11A1PS0, WD3200BMVV-11A9MS0, etc.
