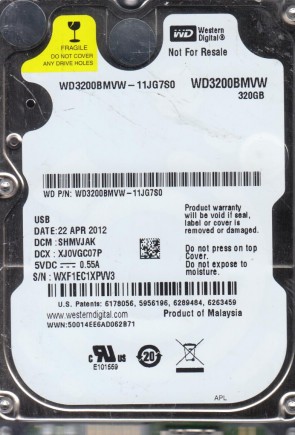

WD3200BMVW Western Digital 2.5″ hard drive with a storage capacity of 320GB and featuring a USB interface.
All information about the Western Digital WD3200BMVW hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Western Digital WD3200BMVW Technical Details:
- Hard Disk Model: WD3200BMVW
- Disk Family: WD Blue Mobile (External Series)
- Form Factor: 2.5″
- Capacity: 320 GB (320,000,000,000 bytes)
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: USB 3.0 (Native USB PCB)
- Buffer-Host Max. Rate: 500 MB/second
- Buffer Size: 8 MB
- Number of Disks (Platters): 1
- Number of Heads: 2
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 117 grams (0.26 pounds)
- Manufacturer: Western Digital Technologies, Inc.
Western Digital WD3200BMVW Hard Drives:
- WD3200BMVW-11JG7S0, DCM SHMVJAK, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM SHOTJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11S5XS0, DCM HBCVJHKB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS2, DCM HAOT2BN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11JG7S0, DCM SHMVJHN, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11JG7S0, DCM SHMVJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11JG7S0, DCM HHMVJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS2, DCM SAOTJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS2, DCM HBOTJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM EBOT2BB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11JG7S0, DCM EHMVJAB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11S5XS0, DCM EHCVJHNB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS2, DCM HAOT2HB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM HAOTJBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM EHOT2HB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11JG7S0, DCM EHMVJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS0, DCM HAOTJBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS0, DCM HAOTJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM HBOT2BB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM EAOT2HB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM DBOTJBB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS4, DCM SBOT2BB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS0, DCM HA0TJHB, Western Digital 320GB USB 2.5″ Hard Drive
- WD3200BMVW-11AMCS2, DCM HB0T2HB, Western Digital 320GB USB 2.5″ Hard Drive
Western Digital WD3200BMVW Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD3200BMVW Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD3200BMVW Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771801-002, 2060-771761-001, 2060-771737-000, 2060-771814-001, 2060-771737-00, etc.
Multiple Model Number revisions:
WD3200BMVW-11S5XS0, WD3200BMVW-11JG7S0, WD3200BMVW-11AMCS4, WD3200BMVW-11AMCS0, WD3200BMVW-11AMCS2, etc.
