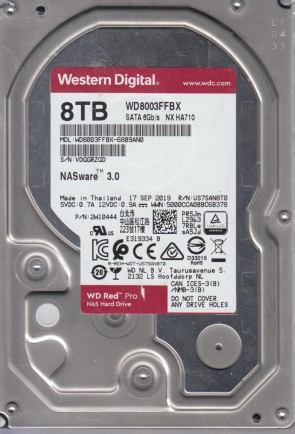

Western Digital WD8003FFBX

Western Digital WD8003FFBX 3.5″ hard drive with a storage capacity of 8 TB and featuring a SATA interface. Western Digital WD8003FFBX Red Pro 8 TB 3.5″ Internal Hard Drive Serial ATA-600 7200 RPM 256 MB Buffer.

All information about the Western Digital WD8003FFBX hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.

Western Digital WD8003FFBX Technical Details:

Manufacturer:

Western Digital

Hard Disk Model:

WD8003FFBX

Disk Family:

Red Pro (NAS)

Form Factor:

3.5″

Capacity:

8 TB (8,000,000,000,000 bytes)

Formatted Capacity:

Approximately 7.27 TB

Rotational Speed:

7200 RPM

Average Seek Time:

8.5 ms (read) / 9.5 ms (write)

Disk Interface:

Serial ATA-600 (SATA 6 Gb/s)

Buffer Size:

262144 KB (256 MB)

External Transfer Rate:

600 MB/s

Mean Time Between Failures (MTBF):

1,000,000 hours

Workload Rating:

180 TB/year

Note: The Western Digital WD8003FFBX is part of the Red Pro series, WD’s high-performance NAS-optimized hard drive line for multi-bay environments.

Western Digital WD8003FFBX Hard Drives:

WD8003FFBX – 8 TB SATA 3.5″ NAS Hard Drive, Red Pro series
Model code breakdown: WD (Western Digital) + 8003 (8 TB capacity) + FFBX (Red Pro variant)
Common firmware revisions: J384A00, J384A01
Recommended usage: High-performance NAS, RAID arrays, network storage

Western Digital WD8003FFBX Failure Symptoms:

Electrical Failure Symptoms:

Drive is powered, but shows no sign of function;
Clicking sound as the heads search or initialize.

Mechanical Failure Symptoms:

Clicking, grinding sounds;
Drive spins but produces rhythmic clicking – typical of head failure.

Logical Failure Examples:

Accidental deletion, accidental format, file corruption;
File system corruption;
RAID array drive dropout.

Firmware Failure Symptoms:

Drive powers up but is not recognised;
Drive detected with 0 MB capacity.

Bad Platter Area Symptoms:

Hard disk appears to “hang” or be “sluggish”;
Constant CRC errors.

Complex Failure Model

(A combination of two or more of the above failure types)

Western Digital WD8003FFBX Data Recovery & HDD Repair:

This NAS drive has a separate ROM/NVRAM chip. When replacing a faulty PCB, you MUST transfer the original ROM chip.

PCB Replacement Information:

To replace a faulty PCB, match the following:

Model number: WD8003FFBX
PCB part number: Common numbers include 2060-810027-000, 2060-810028-000
Firmware revision: e.g., J384A00, J384A01

⚠️ Critical Note: You MUST transfer the original ROM chip.

Common Failure Scenarios:

Symptom

Likely Cause

Recommended Action

Drive dead (no spin)

PCB failure

Replace PCB; transfer ROM chip

Rhythmic clicking

Head failure

Cleanroom head swap required

Repair Options by Failure Type:

Failure Type

Solution

Requirements

Burnt PCB

Replace PCB; transfer ROM chip

Donor board + soldering

Head failure (clicking)

Head/platter swap

Cleanroom + donor drive

Frequently Asked Questions (FAQs):

Q: What is the capacity?
A: 8 TB (approximately 7.27 TB formatted).

Q: Is this drive good for NAS?
A: Yes, the Red Pro series is designed for high-performance NAS.

Q: My drive clicks. What’s wrong?
A: Clicking indicates head failure. Seek professional data recovery.

User Reviews & Summary:

Final Verdict:
The Western Digital WD8003FFBX is a NAS-optimized Red Pro drive.
