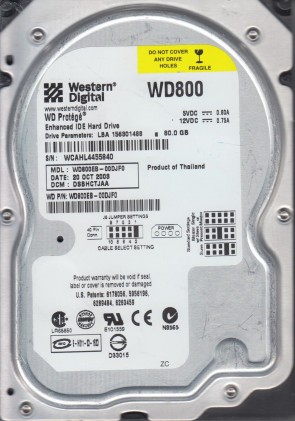

WD800EB Western Digital 3.5″ hard drive with a storage capacity of 80GB and featuring a IDE interface. WD800EB-00HNF0 Western Digital 80GB 5400RPM IDE Ultra ATA 40-Pin 3.5-inch Hard Drive.

All information about the Western Digital WD800EB hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.

Western Digital WD800EB Technical Details:

• Hard Disk Model: WDC WD800EB
• Disk Family: Protege
• Form Factor: 3.5″
• Capacity: 80 GB (80 x 1 000 000 000 bytes)
• Number Of Disks: 2
• Number Of Heads: 4
• Rotational Speed: 5400 RPM
• Rotation Time: 11.11 ms
• Average Rotational Latency: 5.56 ms
• Disk Interface: Ultra-ATA/100
• Buffer-Host Max. Rate: 100 MB/seconds
• Buffer Size: 2048 KB
• Drive Ready Time (typical): 6 seconds
• Average Seek Time: 12.8 ms
• Track To Track Seek Time: 2.0 ms
• Full Stroke Seek Time: 28.5 ms
• Width: 101.6 mm (4.00 inch)
• Depth: 147 mm (5.79 inch)
• Height: 25.4 mm (1.00 inch)
• Weight: 485 grams (1.07 pounds)
• Manufacturer: Western Digital Corporation

Western Digital WD800EB Hard Drives:

• WD800EB-00DJF0, DCM DSBHCTJAA, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-00DJF0, DCM DSCHCAJAA, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM HSBACVJAH, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM HSBHCTJAH, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM DSBHCTJCH, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM HSBHCTJCH, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM HSCHCTJAA, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-11DJF0, DCM HSBACTJAH, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-00DJF0, DCM HSBACTJCA, Western Digital 80GB IDE 3.5″ Hard Drive
• WD800EB-00DJF0, DCM DSCHCTJAH, Western Digital 80GB IDE 3.5″ Hard Drive

Western Digital WD800EB Failure Symptoms:

• Electrical Failure Symptoms:
  Drive is powered, but shows no sign of function;
  Disk knocking as the motor fails to spin;
  Clicking sound as the heads search or initialize;
• Mechanical Failure Symptoms:
  Clicking, grinding sounds;
  Completely quiet due to ” motor freeze”;
  “music” tone as the disk is powered up;
• Logical Failure Examples:
  Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more.
• Firmware Failure Symptoms:
  drive powers up, but is not recognised by the computer;
  Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
  Drive freezes during booting up;
• Bad Platter Area Symptoms:
  Hard disk still accessible but appear to “hang” or “sluggish”;
  Constant Cyclic Redundancy (CRC) errors;
  Unable to access folders or files which could be seen;
• Complex Failure Model

Western Digital WD800EB Data Recovery & HDD Repair:

When it comes to data recovery one of the most common problems Western Digital WD800EB Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.

Multiple PCB Number revisions:
2060-001189-003, 2060-001159-006, etc.

Multiple Model Number revisions:
WD800EB-11DJF0, WD800EB-00DJF0, etc.
