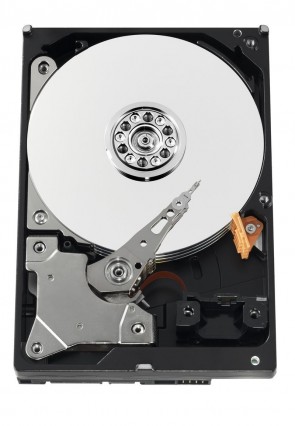

HGST HDE721064SLA330 3.5″ hard drive with a storage capacity of 640 GB and featuring a SATA interface. HGST HDE721064SLA330 Deskstar E7K1000 640 GB 3.5″ Internal Hard Drive Serial ATA-300 7200 RPM 16 MB Buffer.
All information about the HGST HDE721064SLA330 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
HGST HDE721064SLA330 Technical Details:
Note: The HGST HDE721064SLA330 is part of the Deskstar E7K1000 series, which was HGST’s enterprise-class desktop hard drive line. The “E7” designation indicated enhanced reliability for nearline and 24/7 operation environments. This series was designed for applications requiring higher duty cycles than standard desktop drives, such as RAID arrays, network attached storage (NAS), and video surveillance systems. Key features include Rotational Vibration Safeguard (RVS) for multi-drive environments and Enhanced Error Recovery Control to prevent drive dropouts in RAID arrays.
HGST HDE721064SLA330 Hard Drives:
- HDE721064SLA330 – 640 GB SATA 3.5″ Enterprise-Class Hard Drive, Deskstar E7K1000 series
- Model code breakdown: HDE72 (Deskstar E7K1000 series) + 1064 (640 GB capacity) + SLA330 (specific variant identifier)
- Common firmware revisions: A54A, A5DA, AB0A
- Capacity in LBA: 1,250,263,728 sectors
- Also known as: Hitachi HDE721064SLA330 (pre-acquisition branding)
- Recommended usage: 24/7 operation, RAID arrays, NAS, surveillance DVR
HGST HDE721064SLA330 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize;
- Burnt components on PCB – particularly TVS diodes or the motor controller IC.
Mechanical Failure Symptoms:
- Clicking, grinding sounds (head/media damage);
- Completely quiet due to “motor freeze” (bearing seizure);
- Drive spins but produces rhythmic clicking – typical of head failure;
- Occasional “scraping” sound indicating platter damage;
- High-pitched whine indicating spindle motor issues.
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption, software bugs;
- File system corruption, viruses and malware;
- Partition table loss or MBR/GPT corruption;
- “SMART” failure warnings from BIOS or RAID controller;
- RAID array degradation or drive dropout.
Firmware Failure Symptoms:
- Drive powers up but is not recognised by the computer/RAID controller;
- Drive powers up but is recognised wrongly, sometimes with nonsensical characters;
- Drive freezes during booting up;
- Drive detected with 0 MB capacity (service area corruption);
- SMART attributes showing unusual values (e.g., 65535 or 0);
- Drive fails to spin up after firmware corruption (stuck in BSY state).
Bad Platter Area Symptoms:
- Hard disk still accessible but appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors;
- Unable to access folders or files which could be seen;
- Gradual increase of reallocated sector count in SMART data;
- Pending sector count increasing over time;
- RAID rebuild failures due to read errors.
Complex Failure Model
(A combination of two or more of the above failure types)
HGST HDE721064SLA330 Data Recovery & HDD Repair:
When it comes to data recovery, one of the most common problems the HGST HDE721064SLA330 hard drive experiences is firmware corruption leading to BSY (busy) state or drive not ready, followed by PCB failure and head failure. Like other HGST/Hitachi drives of this era, this model has a separate ROM/NVRAM chip that stores drive-specific adaptation data.
PCB Replacement Information:
To replace a faulty PCB on a HGST HDE721064SLA330, you need to match the following:
- Model number: HDE721064SLA330
- PCB part number: Common numbers include 0A31948, 0A31949, 0A32876
- Main controller IC number: Often 88i9146 or similar (Marvell)
- Firmware revision: e.g., A54A, A5DA, AB0A
⚠️ Critical Note: The HGST HDE721064SLA330 has a separate ROM/NVRAM chip (usually 25P10VP or similar) on the PCB. This chip stores drive-specific calibration data, head maps, and adaptive parameters. When replacing the PCB, you MUST transfer the original ROM chip from the old PCB to the new donor board, or use a programmer to copy the ROM contents. Without this, the drive will not function correctly and may not spin up at all.
Symptom Analysis Based on User Reports:
Repair & Data Recovery Options by Failure Type:
Comparison with Related HGST Models:
Frequently Asked Questions (FAQs):
Q: Is the HGST HDE721064SLA330 a 3.5″ or 2.5″ drive?
A: It is a 3.5-inch enterprise-class desktop hard drive.
Q: What is the capacity of the HDE721064SLA330?
A: 640 GB (640,000,000,000 bytes). The formatted capacity is approximately 596 GB.
Q: What is the RPM and cache size?
A: 7200 RPM and 16 MB cache.
Q: What interface does the HDE721064SLA330 use?
A: Serial ATA (SATA) with SATA-300 (3 Gb/s) support.
Q: What is the Deskstar E7K1000 series?
A: The Deskstar E7K1000 series was HGST’s enterprise-class desktop hard drive line, designed for 24/7 operation in environments requiring higher reliability than standard consumer drives. Key features include:
– 1.2 million hour MTBF (vs ~500k for consumer drives)
– Rotational Vibration Safeguard (RVS) for multi-drive environments
– Enhanced Error Recovery Control to prevent RAID dropouts
– 24/7 continuous operation rating
Q: What does the model number HDE721064SLA330 mean?
A: The model number breaks down as:
– HDE72 = Deskstar E7K1000 series
– 1064 = 640 GB capacity
– SLA330 = Specific model variant (interface/cache identifier)
Q: What is the difference between E7K1000 and standard Deskstar 7K1000?
A: The E7K1000 (Enterprise) series offers:
– Higher MTBF (1.2M vs 1.0M hours)
– Better vibration tolerance (RVS technology)
– Enhanced error recovery (CCTL/ERC support)
– Designed for 24/7 RAID/NAS environments
The standard Deskstar 7K1000 series is designed for desktop PCs with lower duty cycles.
Q: My drive is dead and doesn’t spin. Can I replace the PCB myself?
A: Yes, but with important caveats. You need a donor PCB with:
– Identical model number (HDE721064SLA330)
– Identical PCB part number (e.g., 0A31948, 0A31949, 0A32876)
– Similar firmware revision (e.g., A54A, A5DA, AB0A)
You MUST transfer the original ROM chip (usually an 8-pin IC labeled 25P10VP) from the old PCB to the new donor board, or copy its contents using a programmer. Without this, the drive will not work correctly.
Q: My HDE721064SLA330 spins but is not detected / stuck in BSY state. What’s wrong?
A: This is a common firmware issue on the E7K1000 series. The drive powers on but cannot complete initialization, often stuck in a “busy” state. This typically requires professional tools like PC-3000 or MRT to:
– Load a compatible loader via serial terminal
– Access the service area
– Repair or rebuild corrupted firmware modules
This is not a DIY-friendly repair for most users.
Q: My HDE721064SLA330 clicks rhythmically and is not detected. What’s wrong?
A: Rhythmic clicking (usually 5-10 clicks followed by motor stop) is a classic symptom of head failure. The heads cannot read the servo tracks or firmware from the platters. This requires a cleanroom head swap performed by a professional data recovery service.
Q: Can I recover data from a HDE721064SLA330 with bad sectors?
A: Yes, you can try using ddrescue on Linux to create a disk image, skipping bad sectors. However, if the drive has physical damage (clicking, grinding), do not run ddrescue – seek professional help immediately. For drives in RAID arrays, it’s recommended to image each drive individually before attempting array reconstruction.
Q: Is the HDE721064SLA330 compatible with RAID/NAS systems?
A: Yes, this drive includes Enhanced Error Recovery Control and Rotational Vibration Safeguard (RVS), making it well-suited for multi-drive environments. However, for modern NAS systems, newer drives with larger capacities and better power efficiency are recommended.
Q: What is the power consumption of this drive?
A: The HDE721064SLA330 typically consumes:
– Read/Write: ~10.5 W
– Idle: ~7.5 W
– Standby/Sleep: ~0.8 W
This is higher than 5400 RPM drives due to the 7200 RPM spindle speed and enterprise-class components.
Q: Is this drive worth buying today?
A: For new builds, no – modern drives offer larger capacity and better efficiency. However, for legacy system repairs or RAID array rebuilds where an exact drive model is needed, a used HDE721064SLA330 may be necessary. Used units should be tested thoroughly with SMART diagnostics before deployment in critical systems.
Q: What are common SMART attributes to monitor on this drive?
A: Key SMART attributes for this drive include:
– 05 (Reallocated Sector Count)
– 05 (Reallocation Event Count)
– C5 (Current Pending Sector Count)
– 187 (Reported Uncorrectable Errors)
– 196 (Reallocation Event Count)
– 197 (Current Pending Sector Count)
– 198 (Offline Uncorrectable Sector Count)
Any non-zero values for 05, C5, 187, or 198 indicate potential failure.
User Reviews & Summary:
Pros:
– 1.2 million hour MTBF – excellent reliability for 24/7 operation
– 7200 RPM – good performance for its era
– RVS (Rotational Vibration Safeguard) – stable in multi-drive arrays
– Enhanced Error Recovery – prevents RAID dropouts
– HGST build quality – known for reliability
– 512n native sector format – compatible with older OS without alignment
– Designed for 24/7 continuous operation
Cons:
– 640 GB capacity is small by modern standards
– SATA 3 Gb/s – limited by modern standards
– 16 MB cache – smaller than modern drives
– Higher power consumption than 5400 RPM drives
– Discontinued – only available used/refurbished
– Known firmware/BSY issues on this series
– May run hot in poorly ventilated enclosures
Final Verdict:
The HGST HDE721064SLA330 (Deskstar E7K1000 series, 640 GB) is an enterprise-class nearline hard drive designed for 24/7 operation in RAID arrays, NAS systems, and video surveillance applications. Released around 2008-2009, it represented HGST’s mid-range enterprise storage solution, sitting between standard Deskstar consumer drives and full Ultrastar enterprise drives.
Key differentiators of the E7K1000 series include:
– Enhanced reliability (1.2M hours MTBF)
– Rotational Vibration Safeguard for multi-drive tolerance
– 24/7 operation rating
– Time-Limited Error Recovery (TLER/CCTL support)
While these drives were excellent for their time, they are now over 15 years old. The 640 GB capacity is modest, and SATA 3 Gb/s is slow by modern standards. However, for legacy system repairs or retro NAS builds, a working HDE721064SLA330 can still provide reliable service if monitored carefully.
If you still have a working HDE721064SLA330 today:
– Monitor SMART attributes regularly, especially reallocated sectors
– Ensure adequate cooling (these drives run warm)
– Never store irreplaceable data without backups
– Consider migrating to modern drives for critical applications
Pro Data Recovery Tip: The E7K1000 series is known for firmware issues causing BSY (busy) states. If your drive spins but is not detected, do not repeatedly power cycle it – this can corrupt the service area further. Professional tools can often recover data by loading a compatible loader via serial terminal. Additionally, if this drive was part of a RAID array, never attempt to rebuild the array without first imaging all remaining drives. Seek professional assistance for valuable data.
