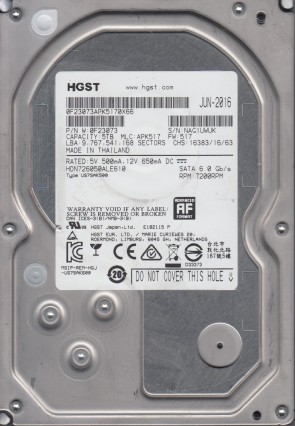

HGST HDN726050ALE610 3.5″ hard drive with a storage capacity of 5 TB and featuring a SATA interface. HGST HDN726050ALE610 Ultrastar He5 5 TB 3.5″ Internal Hard Drive Serial ATA-600 7200 RPM 128 MB Buffer Helium-Filled Enterprise Drive.
All information about the HGST HDN726050ALE610 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
HGST HDN726050ALE610 Technical Details:
Note: The HGST HDN726050ALE610 is part of the Ultrastar He5 (Helium Series), which was HGST’s groundbreaking helium-filled enterprise hard drive line. This drive represented a major technological breakthrough, using helium instead of air inside the sealed enclosure. Helium is less dense than air, reducing turbulence and allowing for five platters within a standard 3.5″ form factor while maintaining 7200 RPM. Key benefits include 23% lower power consumption, lower operating temperature, and increased reliability compared to air-filled drives. This series set the foundation for high-capacity helium-filled drives that are now standard in data centers worldwide.
HGST HDN726050ALE610 Hard Drives:
- HDN726050ALE610 – 5 TB SATA 3.5″ Helium-Filled Enterprise Hard Drive, Ultrastar He5 series
- Model code breakdown: HDN72 (Ultrastar He5/He6 series) + 6050 (5 TB capacity) + ALE610 (specific variant identifier)
- Common firmware revisions: A3W0, A3W1, A3W2, A5T0
- Capacity in LBA: 9,765,259,040 sectors (4Kn) or 9,765,251,408 sectors (512e)
- Sealed helium design – no user-serviceable breather hole
- Recommended usage: Enterprise data centers, cloud storage, high-capacity NAS, video surveillance
HGST HDN726050ALE610 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize;
- Burnt components on PCB – particularly TVS diodes or the motor controller IC;
- Drive does not spin up – possible helium leak or motor failure.
Mechanical Failure Symptoms:
- Clicking, grinding sounds (head/media damage);
- Completely quiet due to “motor freeze” (bearing seizure);
- Drive spins but produces rhythmic clicking – typical of head failure;
- Occasional “scraping” sound indicating platter damage;
- High-pitched whine indicating spindle motor issues;
- Unusual “whooshing” sound – possible helium leak (rare).
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption, software bugs;
- File system corruption, viruses and malware;
- Partition table loss or MBR/GPT corruption;
- “SMART” failure warnings from BIOS or RAID controller;
- RAID array degradation or drive dropout.
Firmware Failure Symptoms:
- Drive powers up but is not recognised by the computer/RAID controller;
- Drive powers up but is recognised wrongly, sometimes with nonsensical characters;
- Drive freezes during booting up;
- Drive detected with 0 MB capacity (service area corruption);
- SMART attributes showing unusual values (e.g., 65535 or 0);
- Drive fails to spin up after firmware corruption.
Bad Platter Area Symptoms:
- Hard disk still accessible but appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors;
- Unable to access folders or files which could be seen;
- Gradual increase of reallocated sector count in SMART data;
- Pending sector count increasing over time;
- RAID rebuild failures due to read errors.
Helium-Specific Failure Symptoms:
- Helium leak (rare but critical): Drive may show helium pressure warning in SMART attribute (22), increased power consumption, or unusual operating temperatures;
- Seal failure: Drive may exhibit erratic behavior as internal pressure changes;
- Cannot be opened in a standard cleanroom: Helium-filled drives require specialized equipment for head/platter swaps due to different gas dynamics.
Complex Failure Model
(A combination of two or more of the above failure types)
HGST HDN726050ALE610 Data Recovery & HDD Repair:
When it comes to data recovery, one of the most common problems the HGST HDN726050ALE610 hard drive experiences is PCB (circuit board) failure due to power surges, followed by firmware corruption and head failure. As a helium-filled drive, data recovery is significantly more complex and expensive than traditional air-filled drives.
PCB Replacement Information:
To replace a faulty PCB on a HGST HDN726050ALE610, you need to match the following:
- Model number: HDN726050ALE610
- PCB part number: Common numbers include 0B25025, 0B25026, 0B26679
- Main controller IC number: Often 88i9346 or similar (Marvell)
- Firmware revision: e.g., A3W0, A3W1, A3W2, A5T0
⚠️ Critical Note: The HGST HDN726050ALE610 has a separate ROM/NVRAM chip (usually 25P10VP or similar) on the PCB that stores drive-specific calibration data, head maps, and helium calibration parameters. When replacing the PCB, you MUST transfer the original ROM chip from the old PCB to the new donor board, or use a programmer to copy the ROM contents. Without this, the drive will not function correctly.
Helium Drive Data Recovery Complexity:
The HDN726050ALE610 is a hermetically sealed helium-filled drive. Unlike traditional air-filled drives, helium drives cannot be opened in a standard cleanroom. Special considerations include:
- Requires specialized equipment to handle helium-sealed drives
- Extremely limited donor availability – matching heads requires identical helium drives
- Much higher recovery costs than traditional air-filled drives (typically $1500-$3000 USD)
- Not all data recovery labs have helium drive capabilities
Symptom Analysis Based on User Reports:
Repair & Data Recovery Options by Failure Type:
Comparison with Related HGST Models:
Frequently Asked Questions (FAQs):
Q: Is the HGST HDN726050ALE610 a 3.5″ or 2.5″ drive?
A: It is a 3.5-inch enterprise hard drive.
Q: What is the capacity of the HDN726050ALE610?
A: 5 TB (5,000,000,000,000 bytes). The formatted capacity is approximately 4.54 TB.
Q: What is the RPM and cache size?
A: 7200 RPM and 128 MB cache.
Q: What interface does the HDN726050ALE610 use?
A: Serial ATA (SATA) with SATA-600 (6 Gb/s) support.
Q: What makes helium-filled drives different from traditional air-filled drives?
A: Helium-filled drives use helium gas instead of air inside the sealed enclosure. Helium is 1/7th the density of air, which reduces turbulence and allows for:
– More platters – up to 7 or 8 in standard 3.5″ form factor
– Lower power consumption – up to 23% less than equivalent air-filled drives
– Lower operating temperature – better heat dissipation
– Improved reliability – fewer mechanical issues
– Quieter operation
Q: What does the model number HDN726050ALE610 mean?
A: The model number breaks down as:
– HDN72 = Ultrastar He5/He6 series (helium enterprise)
– 6050 = 5 TB capacity
– ALE610 = SATA 6 Gb/s, 128 MB cache, specific firmware variant
Q: My drive is dead and doesn’t spin. Can I replace the PCB myself?
A: Yes, but with important caveats. You need a donor PCB with:
– Identical model number (HDN726050ALE610)
– Identical PCB part number (e.g., 0B25025, 0B25026, 0B26679)
– Similar firmware revision
You MUST transfer the original ROM chip from the old PCB to the new donor board, or copy its contents using a programmer. Without this, the drive will not work correctly.
Q: My HDN726050ALE610 clicks rhythmically and is not detected. What’s wrong?
A: Rhythmic clicking (usually 5-10 clicks followed by motor stop) is a classic symptom of head failure. However, for helium-filled drives, head replacement is significantly more complex and expensive than air-filled drives. Most standard data recovery labs cannot work on helium drives. You will need a lab with specialized helium drive recovery equipment.
Q: Can I recover data from a HDN726050ALE610 with bad sectors?
A: Yes, you can try using ddrescue on Linux to create a disk image, skipping bad sectors. However, if the drive has physical damage (clicking, grinding), do not run ddrescue – seek professional help immediately. For RAID arrays, image each drive individually before attempting array reconstruction.
Q: What is SMART attribute 22 (Helium Pressure) on this drive?
A: SMART attribute 22 monitors the internal helium pressure. Normal value should be around 100. If this value decreases significantly, it indicates a helium leak from the sealed enclosure. This is a critical failure – once enough helium escapes, the drive will fail due to increased head drag and turbulence. If you see this value dropping, backup your data immediately and replace the drive.
Q: Is the HDN726050ALE610 compatible with standard NAS systems?
A: Yes, this drive is compatible with most NAS systems. However, note that it is an enterprise-grade drive designed for 24/7 operation with a 550 TB/year workload rating. It is an excellent choice for high-capacity NAS, but ensure your NAS supports 4Kn sector format if you have the 4Kn variant.
Q: What is the power consumption of this drive?
A: The HDN726050ALE610 typically consumes:
– Read/Write: ~8.4 W
– Idle: ~5.8 W
– Standby/Sleep: ~1.0 W
These power figures are approximately 23% lower than equivalent air-filled 5 TB drives.
Q: Is this drive worth buying today?
A: For new builds, yes – used helium drives can offer excellent value for high-capacity storage. However, be aware of their age (released around 2014-2015). For critical data, new drives are recommended. Used units should be tested thoroughly with SMART diagnostics and helium pressure monitoring before deployment.
Q: What are common SMART attributes to monitor on this drive?
A: Key SMART attributes for this drive include:
– 22 (Helium Pressure) – unique to helium drives, normal is ~100
– 05 (Reallocated Sector Count)
– C5 (Current Pending Sector Count)
– 187 (Reported Uncorrectable Errors)
– 197 (Current Pending Sector Count)
– 198 (Offline Uncorrectable Sector Count)
User Reviews & Summary:
Pros:
– Groundbreaking helium technology – industry first in 5TB capacity
– 2 million hour MTBF – excellent enterprise reliability
– 7200 RPM – good performance for high-capacity drive
– Lower power consumption than air-filled equivalents
– Lower operating temperature – runs cool
– 550 TB/year workload rating – suitable for 24/7 operation
– 5 platters in standard 3.5″ form factor – high density for its time
– Relatively quiet operation
Cons:
– Helium drive recovery is expensive and complex
– Not all data recovery labs can service helium drives
– Specialized donor drives needed for head swaps
– 5 TB capacity is moderate by modern standards (20TB+ available)
– SATA 6 Gb/s – adequate but not cutting edge
– Discontinued – only available used/refurbished
– Helium leaks are possible (though rare)
– Cannot be opened in standard cleanroom
Final Verdict:
The HGST HDN726050ALE610 (Ultrastar He5, 5 TB) is a historically significant drive – it was the world’s first 5 TB hard drive and the first commercially available helium-filled drive. Released in 2014, this drive revolutionized the storage industry by demonstrating that helium technology could enable higher capacities while reducing power consumption and improving reliability.
Key innovations of the Ultrastar He5 series:
– Helium-filled sealed enclosure – reduced aerodynamic drag
– 5 platters in standard 3.5″ form factor – industry first
– 23% lower power consumption than air-filled equivalents
– 2 million hour MTBF – exceptional reliability rating
If you still have a working HDN726050ALE610 today:
– Monitor SMART attribute 22 (Helium Pressure) regularly
– Ensure adequate cooling (though they run cooler than air-filled drives)
– Never store irreplaceable data without backups
– For data recovery, seek a lab with helium drive capabilities
Pro Data Recovery Tip: Helium-filled drives require specialized recovery equipment. If your HDN726050ALE610 has head failure or platter damage, do not attempt to open it in a standard cleanroom – standard cleanrooms use air, which will contaminate the drive’s internal environment designed for helium. Seek a professional data recovery lab with helium drive capabilities (such as facilities with specialized helium-compatible cleanrooms). Also, if SMART attribute 22 (Helium Pressure) is dropping, backup immediately – once the helium level drops below a threshold, the drive will fail catastrophically.
