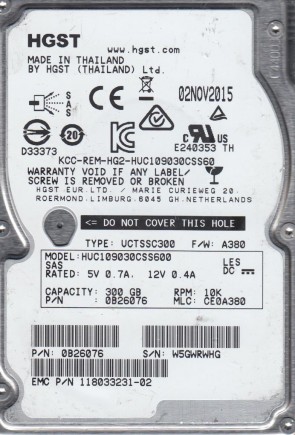

HGST HUC109030CSS600 2.5″ hard drive with a storage capacity of 300GB and featuring a SAS interface.
All information about the HGST HUC109030CSS600 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
HGST HUC109030CSS600 Technical Details:
Manufacturer:
HGST (Hitachi Global Storage Technologies)
Hard Disk Model:
HUC109030CSS600
Disk Family:
Ultrastar C10K900
Form Factor:
2.5″
Capacity:
300 GB (300,000,000,000 bytes)
Formatted Capacity:
Approximately 279 GB
Number Of Disks:
2
Number Of Heads:
4
Rotational Speed:
10000 RPM (10K)
Average Seek Time:
4.2 ms (read) / 4.8 ms (write)
Disk Interface:
SAS 6 Gb/s (Serial Attached SCSI)
Buffer Size:
32768 KB (32 MB)
External Transfer Rate:
600 MB/s (SAS 6 Gb/s)
Mean Time Between Failures (MTBF):
2,000,000 hours
HGST HUC109030CSS600 Hard Drives:
- HUC109030CSS600 – 300 GB SAS 2.5″ Enterprise Hard Drive, Ultrastar C10K900 series
HGST HUC109030CSS600 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
HGST HUC109030CSS600 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems HGST HUC109030CSS600 hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as 0B27964, etc.
