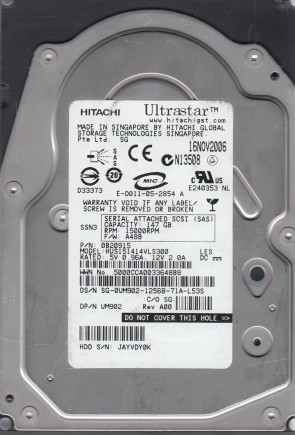

HGST HUS151414VLS300 3.5″ hard drive with a storage capacity of 147 GB and featuring a SCSI interface. HGST HUS151414VLS300 Ultrastar 15K147 147 GB 3.5″ Internal Hard Drive SCSI Ultra320 15000 RPM 16 MB Buffer.
All information about the HGST HUS151414VLS300 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
HGST HUS151414VLS300 Technical Details:
Note: The HGST HUS151414VLS300 is part of the Ultrastar 15K147 series, a high-performance enterprise SCSI hard drive line. The “15K” designation indicates 15000 RPM spindle speed, providing extremely low latency and high IOPS for mission-critical applications. These drives were designed for high-end servers, storage arrays, and database systems requiring maximum performance.
HGST HUS151414VLS300 Hard Drives:
- HUS151414VLS300 – 147 GB SCSI 3.5″ Enterprise Hard Drive, Ultrastar 15K147 series
- Model code breakdown: HUS15 (Ultrastar 15K147) + 1414 (147 GB capacity) + VLS300 (specific variant)
- Interface: SCSI Ultra320 (68-pin or 80-pin depending on variant)
- Common firmware revisions: J384A00, J384A01
- Recommended usage: High-end enterprise servers, database servers, legacy storage arrays
HGST HUS151414VLS300 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize.
Mechanical Failure Symptoms:
- Clicking, grinding sounds;
- Drive spins but produces rhythmic clicking – typical of head failure.
SCSI-Specific Symptoms:
- Drive not recognised by SCSI controller;
- SCSI bus negotiation failures;
- Termination issues causing erratic behavior.
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption;
- File system corruption.
Firmware Failure Symptoms:
- Drive powers up but is not recognised;
- Drive detected with 0 MB capacity.
Bad Platter Area Symptoms:
- Hard disk appears to “hang” or be “sluggish”;
- Constant CRC errors.
Complex Failure Model
(A combination of two or more of the above failure types)
HGST HUS151414VLS300 Data Recovery & HDD Repair:
This SCSI drive requires specialized SCSI controllers for access. When replacing a faulty PCB, you MUST transfer the original ROM chip.
PCB Replacement Information:
To replace a faulty PCB, match the following:
- Model number: HUS151414VLS300
- PCB part number: Common numbers include 0A32850, 0A32851
- Firmware revision: e.g., J384A00, J384A01
⚠️ Critical Note: SCSI drives are not compatible with standard SATA/USB controllers. Data recovery requires specialized SCSI equipment. You MUST transfer the original ROM chip.
Common Failure Scenarios:
Repair Options by Failure Type:
Frequently Asked Questions (FAQs):
Q: Is the HUS151414VLS300 a SATA drive?
A: No, it is a SCSI Ultra320 drive, not compatible with SATA controllers.
Q: What is the capacity and RPM?
A: 147 GB and 15000 RPM (15K ultra-high performance).
Q: My drive clicks. What’s wrong?
A: Clicking indicates head failure. Seek professional data recovery.
User Reviews & Summary:
Pros:
– 15000 RPM – exceptional performance
– 1.4 million hour MTBF – enterprise reliability
– 3.4 ms seek time – extremely low latency
– Designed for 24/7 mission-critical operation
Cons:
– 147 GB capacity is small by modern standards
– SCSI requires specialized controllers
– Discontinued – used only
– Higher power consumption and heat output
Final Verdict:
The HGST HUS151414VLS300 is a legacy high-performance SCSI drive. Data recovery requires specialized equipment.
