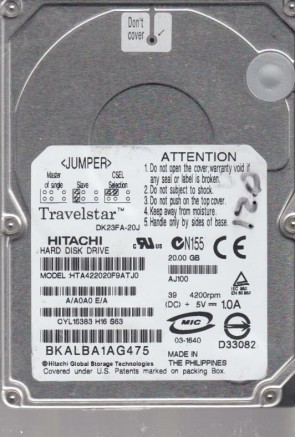

Hitachi HTA422020F9ATJ0 2.5″ hard drive with a storage capacity of 20 GB and featuring an IDE/PATA interface. Hitachi HTA422020F9ATJ0 Endurastar J4K20 20 GB 2.5″ Internal Hard Drive Ultra ATA/100 4200 RPM 2 MB/8 MB Buffer.
All information about the Hitachi HTA422020F9ATJ0 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Hitachi HTA422020F9ATJ0 Technical Details:
Note: The Hitachi HTA422020F9ATJ0 is an industrial and automotive-grade hard drive from the Endurastar line. It features the signature “Travelstar” base architecture but is specifically ruggedized to operate under extreme environmental conditions, supporting a wide temperature range from -30°C to +85°C and operational altitudes up to 5,500 meters. It was widely used in legacy automotive GPS navigation systems, aerospace telematic docks, and early digital signs.
Hitachi HTA422020F9ATJ0 Hard Drives:
- HTA422020F9ATJ0 – 20 GB Automotive IDE 2.5″ Hard Drive;
Hitachi HTA422020F9ATJ0 Failure Symptoms:
- Wide-Temp Lubricant Coagulation (Cold Lock):
Due to the drive sitting inside vehicle dashboards or factory floors for decades without use, the fluid dynamic bearing (FDB) oil can dry up or freeze. The drive stays completely silent or makes a faint, struggling electric “whining” sound without spinning the platters up. - Actuator Ramp Stiction (Squealing/Chirping):
Severe vehicular vibration or road shocks can toss the heads off the parking ramp directly onto the platter. Upon booting, the drive emits a faint, repetitive metallic squealing or chirping tone as the spindle motor fails to break past friction. - Legacy IDE Pin / PCB Trace Oxidation:
Exposure to climate humidity over 15+ years can oxidize the 44 physical interface pins or copper board traces. The drive spins up perfectly smoothly with zero noise but prompts an “HDD Not Detected” or “Glovebox Error” on the host machine. - Logical & Servo Track Wear:
Continuous loop logs from legacy navigation dashboards can result in local sector wear, producing repetitive read/write timeouts or severe operating freezes.
Hitachi HTA422020F9ATJ0 Data Recovery & HDD Repair:
When it comes to data recovery from this 4200 RPM vintage IDE drive, modern computer systems present a challenge as they lack 44-pin IDE controller slots. Standard recovery software will drop connection or freeze during bad-sector encounters. Recovery must be executed using hardware platforms like the PC-3000 in PIO or slow UDMA modes. Additionally, replacing a dead circuit board requires matching the PCB Number and physically transferring the ROM/NVRAM chip via hot-air desoldering to preserve unique adaptive head tuning parameters.
