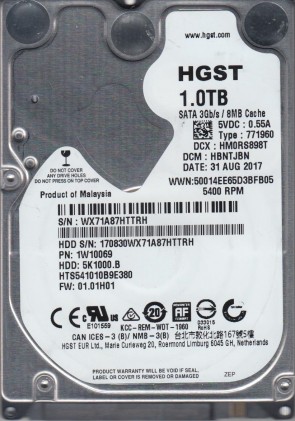

Hitachi HTS541010B9E380 2.5″ hard drive with a storage capacity of 1 TB and featuring a SATA interface. Hitachi HTS541010B9E380 Travelstar 5K1000 1 TB 2.5″ Internal Hard Drive Serial ATA-300 5400 RPM 8 MB Buffer.
All information about the Hitachi HTS541010B9E380 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Hitachi HTS541010B9E380 Technical Details:
Note: The Hitachi HTS541010B9E380 is part of the Travelstar 5K1000 series, a high-capacity 2.5″ laptop hard drive line released around 2010-2011. These drives were designed for notebook computers, external storage, and portable devices, offering 1 TB of storage in a 9.5mm height form factor.
Hitachi HTS541010B9E380 Hard Drives:
- HTS541010B9E380 – 1 TB SATA 2.5″ Laptop Hard Drive, Travelstar 5K1000 series
- Model code breakdown: HTS54 (Travelstar 5400 RPM) + 1010 (1 TB capacity) + B9E380 (specific variant)
- Common firmware revisions: J384A00, J384A01, J384A02
- Height: 9.5 mm (standard 2.5″)
- Recommended usage: Laptop replacement, external enclosure, PS3/PS4 upgrade
Hitachi HTS541010B9E380 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize.
Mechanical Failure Symptoms:
- Clicking, grinding sounds;
- Completely quiet due to “motor freeze”;
- Drive spins but produces rhythmic clicking – typical of head failure.
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption;
- File system corruption, viruses and malware;
- Boot sector corruption.
Firmware Failure Symptoms:
- Drive powers up but is not recognised;
- Drive detected with 0 MB capacity.
Bad Platter Area Symptoms:
- Hard disk appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors.
Complex Failure Model
(A combination of two or more of the above failure types)
Hitachi HTS541010B9E380 Data Recovery & HDD Repair:
This drive has a separate ROM/NVRAM chip on the PCB. When replacing a faulty PCB, you MUST transfer the original ROM chip.
PCB Replacement Information:
To replace a faulty PCB, match the following:
- Model number: HTS541010B9E380
- PCB part number: Common numbers include 0A58818, 0A58819
- Firmware revision: e.g., J384A00, J384A01, J384A02
⚠️ Critical Note: You MUST transfer the original ROM chip from the old PCB to the new donor board. Without this, the drive will not function correctly.
Common Failure Scenarios:
Repair Options by Failure Type:
Frequently Asked Questions (FAQs):
Q: Is the HTS541010B9E380 a 3.5″ or 2.5″ drive?
A: It is a 2.5-inch laptop drive (9.5mm height).
Q: What is the capacity?
A: 1 TB (approximately 931 GB formatted).
Q: What is the RPM and cache?
A: 5400 RPM and 8 MB cache.
Q: Can I use this drive in my laptop?
A: Yes, it’s a standard 2.5″ SATA drive compatible with most laptops. For modern laptops, an SSD is recommended.
Q: My drive clicks. What’s wrong?
A: Clicking indicates head failure. Seek professional data recovery.
User Reviews & Summary:
Pros:
– 1 TB capacity – good for its era
– Low power consumption – good for laptops
– Quiet operation
– Standard 2.5″ form factor
Cons:
– 5400 RPM – slower than 7200 RPM drives
– 8 MB cache – small by modern standards
– Discontinued – used only
Final Verdict:
The Hitachi HTS541010B9E380 (Travelstar 5K1000, 1 TB) is a legacy laptop drive. For retro laptop repairs or PS3/PS4 upgrades, it works well. For data recovery from a clicking drive, seek professional assistance.
Pro Data Recovery Tip: This drive is known for head failure. If it clicks, do not repeatedly power cycle it. Seek professional help immediately.
