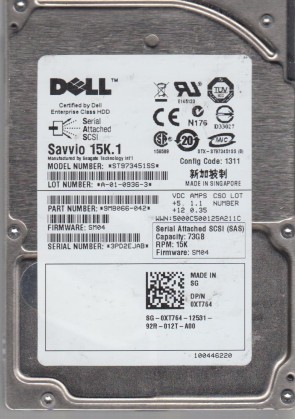

ST973451SS Seagate 2.5″ hard drive with a storage capacity of 73GB and featuring a SAS interface. ST973451SS Seagate Savvio 73GB 15000RPM SAS 3GB/s 16MB Cache 2.5-inch Hard Drive.
All information about the Seagate ST973451SS hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Seagate ST973451SS Technical Details:
- Hard Disk Model: SEAGATE ST973451SS
- Disk Family: Savvio 15K 73451
- Form Factor: 2.5″
- Capacity: 73.4 GB (73.4 x 1 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 15000 RPM
- Rotation Time: 4.00 ms
- Average Rotational Latency: 2.00 ms
- Disk Interface: SAS
- Buffer-Host Max. Rate: 300 MB/seconds
- Buffer Size: 16384 KB
- Average Seek Time: 2.9 ms
- Track To Track Seek Time: 0.2 ms
- Width: 70.1 mm (2.76 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 14.8 mm (0.58 inch)
- Weight: 210 grams (0.46 pounds)
- Acoustic (Idle): 2.3 Bel
- Acoustic (Min performance and volume): 2.5 Bel
- Acoustic (Max performance and volume): 3.0 Bel
- Required Power For Spinup: 1200 mA
- Power Required (Seek): 2.4 W
- Power Required (Idle): 1.2 W
- Power Required (Standby): 0.36 W
- Manufacturer: Seagate Technology
Seagate ST973451SS Hard Drives:
- ST973451SS, 3PD, PN 9MB066-042, FW SM04, Dell 72GB SAS 2.5″ Hard Drive
- Seagate ST973451SS, 15000RPM, 3.0Gp/s, 73GB SAS 2.5″ HDD
- ST973451SS, 3PD, AMKSPR, PN 9MB066-035, FW HPD9, HP 72GB SAS 2.5″ Hard Drive
- ST973451SS, 3PD, PN 9MB066-033, FW HPD4, HP 72GB SAS 2.5″ Hard Drive
- ST973451SS, 3PD, PN 9MB066-033, FW HPD7, HP 72GB SAS 2.5″ Hard Drive
- ST973451SS, 3PD, PN 9MB066-042, FW SM04, Seagate 73GB SAS 2.5″ Hard Drive
Seagate ST973451SS Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Seagate ST973451SS Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Seagate ST973451SS Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
100419609, etc.
