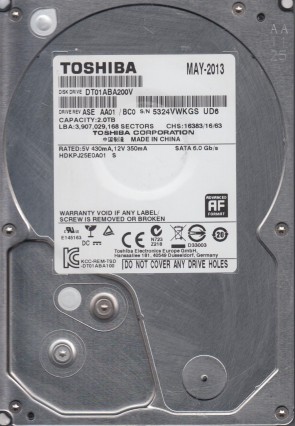

DT01ABA200 Toshiba 3.5″ hard drive with a storage capacity of 2TB and featuring a SATA interface. DT01ABA200 Toshiba 2TB 5700RPM SATA 6Gb/s 3.5-inch Hard Drive.
All information about the Toshiba DT01ABA200 hard disk drive: technical parameters, failure symptoms, free asked questions, reviews, HDD repair and data recovery.
Toshiba DT01ABA200 Technical Details:
- Hard Disk Model: TOSHIBA DT01ABA200
- Disk Family: DT01ABA
- Form Factor: 3.5″
- Capacity: 2 TB (2 x 1 000 000 000 000 bytes)
- Rotational Speed: 5700 RPM
- Rotation Time: 10.53 ms
- Average Rotational Latency: 5.26 ms
- Disk Interface: Serial-ATA/600
- Buffer-Host Max. Rate: 600 MB/seconds
- Buffer Size: 32768 KB
- Track To Track Seek Time: 0.5 ms
- Width: 101.6 mm (4.00 inch)
- Depth: 147 mm (5.79 inch)
- Height: 26.1 mm (1.03 inch)
- Weight: 680 grams (1.50 pounds)
- Manufacturer: Toshiba Corp., Storage Device Division
Toshiba DT01ABA200 Hard Drives:
- DT01ABA200V, AA01/BC0, HDKPJ25E0A01 S, Toshiba 2TB SATA 3.5″ Hard Drive
- DT01ABA200V, AB00/BB0, HDKPJ25A1A01 S, Toshiba 2TB SATA 3.5″ Hard Drive
- DT01ABA200, AA00/AB0, HDKPJ09A0A01 J, Toshiba 2TB SATA 3.5″ Hard Drive
- DT01ABA200, AA00/BB0, HDKPJ09A0A01 S, Toshiba 2TB SATA 3.5″ Hard Drive
Toshiba DT01ABA200 Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Toshiba DT01ABA200 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba DT01ABA200 Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
0A90380, 0A90380, etc.
