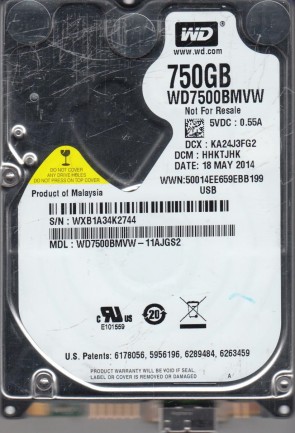

WD7500BMVW Western Digital 2.5″ hard drive with a storage capacity of 750GB and featuring a USB interface.
All information about the Western Digital WD7500BMVW hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Western Digital WD7500BMVW Technical Details:
- Hard Disk Model: Western Digital WD7500BMVW
- Disk Family: WD My Passport Premium (Native USB)
- Form Factor: 2.5″
- Capacity: 750 GB (750 000 000 000 bytes)
- Number Of Disks: 2
- Number Of Heads: 4
- Rotational Speed: 5400 RPM
- Rotation Time: 11.11 ms
- Average Rotational Latency: 5.56 ms
- Disk Interface: USB 3.0 Native
- Buffer-Host Max. Rate: 5.0 Gb/seconds
- Buffer Size: 8 MB (8.0 MB)
- Drive Ready Time (typical): 3.5 seconds
- Average Seek Time: 12.0 ms
- Track To Track Seek Time: 2.5 ms
- Width: 69.85 mm (2.75 inch)
- Depth: 100.2 mm (3.94 inch)
- Height: 9.5 mm (0.37 inch)
- Weight: 117 grams (0.26 pounds)
- Acoustic (Idle): 2.4 Bel
- Acoustic (Min performance and volume): 2.4 Bel
- Acoustic (Max performance and volume): 2.6 Bel
- Required Power For Spinup: 5V (Peak 1.0A)
- Power Required (Seek): 2.5 W
- Power Required (Idle): 0.85 W
- Power Required (Standby): 0.25 W
- Manufacturer: Western Digital Corporation
Western Digital WD7500BMVW Hard Drives:
- WD7500BMVW-11AJGS2, DCM HHKTJHK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS4, DCM HHNT2BK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS4, DCM HHNTJHK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11S5XS0, DCM HBMVJBK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS0, DCM EBCTJHN, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS3, DCM HHKTJBKB, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS4, DCM HHNTJBK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM SBKTJBK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM EBKT2BK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS4, DCM , Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM , Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11S5XS0, DCM ECCTJCB, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM HBNTJHK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM HBNTJBN, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM HBNTJBK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM EHKTJHK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM HBMT2BB, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM HBKT2HK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS3, DCM HBMT2BB, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS1, DCM SBOTJBB, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS2, DCM EBKT2HK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11S5XS1, DCM EBOTJBK, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11S5XS1, DCM HBOVJBN, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS1, DCM SBOTJBN, Western Digital 750GB USB 2.5″ Hard Drive
- WD7500BMVW-11AJGS1, DCM SBKTJHK, Western Digital 750GB USB 2.5″ Hard Drive
Western Digital WD7500BMVW Failure Symptoms:
- Electrical Failure Symptoms:
Drive is powered, but shows no sign of function;
Disk knocking as the motor fails to spin;
Clicking sound as the heads search or initialize; - Mechanical Failure Symptoms:
Clicking, grinding sounds;
Completely quiet due to ” motor freeze”;
“music” tone as the disk is powered up; - Logical Failure Examples:
Accidental deletion, accidental format, file corruption, software bugs, file system corruption, viruses and malware, and many, many more. - Firmware Failure Symptoms:
drive powers up, but is not recognised by the computer;
Drive powers up, but is recognised wrongly, sometimes with nonsensical characters;
Drive freezes during booting up; - Bad Platter Area Symptoms:
Hard disk still accessible but appear to “hang” or “sluggish”;
Constant Cyclic Redundancy (CRC) errors;
Unable to access folders or files which could be seen; - Complex Failure Model
Western Digital WD7500BMVW Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Western Digital WD7500BMVW Hard Disk Drive experience is burnt circuit board(PCB). So if you will need to match a replacement PCB, it is important that you note the “Board Number” of your current circuit board in addition to the hard drive’s “Model Number“.
Multiple PCB Number revisions:
2060-771961-001, 2060-771961-000, 2060-771801-002, etc.
Multiple Model Number revisions:
WD7500BMVW-11AJGS3, WD7500BMVW-11AJGS2, WD7500BMVW-11S5XS1, WD7500BMVW-11AJGS4, WD7500BMVW-11AJGS1, WD7500BMVW-11AJGS0, WD7500BMVW-11S5XS0, etc.
