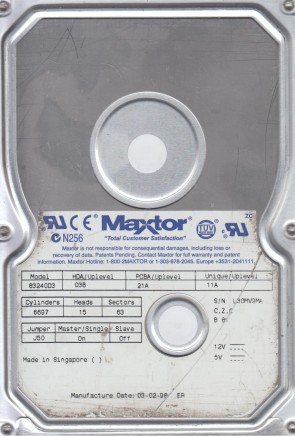

Maxtor 83240D3 3.5″ hard drive with a storage capacity of 32.4 GB and featuring an IDE interface. Maxtor 83240D3 DiamondMax Plus 8 32.4 GB 3.5″ Internal Hard Drive IDE Ultra ATA/133 5400 RPM 2 MB Buffer.
All information about the Maxtor 83240D3 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Maxtor 83240D3 Technical Details:
Note: The Maxtor 83240D3 is part of the DiamondMax Plus 8 series, released around 2002-2003. This series was Maxtor’s budget-to-mainstream desktop hard drive line, offering capacities from 20 GB to 80 GB. The DiamondMax Plus 8 series featured 5400 RPM spindle speed and was available with either 2 MB or 8 MB cache configurations. The 83240D3 represents the 32.4 GB capacity variant with a single platter design.
Maxtor 83240D3 Hard Drives:
- 83240D3 – 32.4 GB IDE 3.5″ Hard Drive, DiamondMax Plus 8 series
- Model code breakdown: 8 (DiamondMax Plus 8 series) + 3240 (32.40 GB capacity) + D3 (IDE interface, 2 heads)
- Common firmware revisions: FAK31A11, VAK31A11
- Capacity in LBA: 63,300,480 sectors (approximately)
- Also known as: Maxtor 4K032H3 (OEM variant)
Maxtor 83240D3 Failure Symptoms:
Electrical Failure Symptoms:
- Drive is powered, but shows no sign of function;
- Disk knocking as the motor fails to spin;
- Clicking sound as the heads search or initialize;
- Burnt components on PCB – particularly TVS diodes or the main controller IC.
Mechanical Failure Symptoms:
- Clicking, grinding sounds (head/media damage);
- Completely quiet due to “motor freeze” (bearing seizure);
- Drive spins but produces rhythmic clicking – typical of head failure;
- Occasional “scraping” sound indicating platter damage.
Logical Failure Examples:
- Accidental deletion, accidental format, file corruption, software bugs;
- File system corruption, viruses and malware;
- Partition table loss or MBR corruption;
- “SMART” failure warnings from BIOS.
Firmware Failure Symptoms:
- Drive powers up but is not recognised by the computer;
- Drive powers up but is recognised wrongly, sometimes with nonsensical characters;
- Drive freezes during booting up;
- Drive detected with 0 MB capacity (service area corruption).
Bad Platter Area Symptoms:
- Hard disk still accessible but appears to “hang” or be “sluggish”;
- Constant Cyclic Redundancy Check (CRC) errors;
- Unable to access folders or files which could be seen;
- Gradual increase of reallocated sector count in SMART data.
Complex Failure Model
(A combination of two or more of the above failure types)
Maxtor 83240D3 Data Recovery & HDD Repair:
When it comes to data recovery, one of the most common problems the Maxtor 83240D3 hard drive experiences is PCB (circuit board) failure due to power surges, followed by firmware corruption and head failure. This drive uses the “Poker” PCB series common to many Maxtor drives of this era.
PCB Replacement Information:
To replace a faulty PCB on a Maxtor 83240D3, you need to match the following:
- Model number: 83240D3
- PCB part number: Common numbers include 1465, 1480, 1800 (Poker series)
- Main controller IC number: Often 040108200 or similar
- Firmware revision: e.g., FAK31A11, VAK31A11
⚠️ Critical Note: Unlike Western Digital drives, the Maxtor 83240D3 does NOT have a separate ROM chip on the PCB. The firmware code is masked inside the main controller (DSP) chip. This means PCB replacement requires an identical donor board – there is no ROM to transfer. Even with a matching PCB, if the drive still clicks, the problem is likely head failure.
Symptom Analysis Based on User Reports:
Repair & Data Recovery Options by Failure Type:
Comparison with Related Maxtor Models:
Frequently Asked Questions (FAQs):
Q: Is the Maxtor 83240D3 a 3.5″ or 2.5″ drive?
A: It is a 3.5-inch desktop hard drive.
Q: What is the capacity of the 83240D3?
A: 32.4 GB (approximately 32,400 MB).
Q: What is the RPM and cache size?
A: 5400 RPM and 2 MB cache.
Q: What interface does the 83240D3 use?
A: IDE (PATA) with Ultra ATA/133 support.
Q: What is the DiamondMax Plus 8 series?
A: The DiamondMax Plus 8 series was Maxtor’s budget-to-mainstream desktop hard drive line released around 2002-2003, offering capacities from 20 GB to 80 GB. The “Plus 8” indicated the 8th generation of the DiamondMax Plus line. These drives were available with either 2 MB or 8 MB cache configurations.
Q: What does the model number 83240D3 mean?
A: The model number breaks down as:
– 8 = DiamondMax Plus 8 series
– 3240 = 32.40 GB capacity
– D3 = IDE interface, 2 heads
Q: My drive is dead and doesn’t spin. Can I replace the PCB myself?
A: Yes, but with important caveats. You need a donor PCB with:
– Identical model number (83240D3)
– Identical PCB part number (e.g., 1465, 1480, 1800)
– Identical main controller IC number
– Similar firmware revision
There is no separate ROM chip to transfer – the donor board must be fully compatible. If the drive still clicks or is not detected after PCB swap, the problem is likely head failure.
Q: My 83240D3 clicks rhythmically and is not detected. What’s wrong?
A: Rhythmic clicking (usually 5-10 clicks followed by motor stop) is a classic symptom of head failure. The heads cannot read the servo tracks or firmware from the platters. This requires a cleanroom head swap performed by a professional data recovery service.
Q: Can I recover data from a 83240D3 with bad sectors?
A: Yes, you can try using ddrescue on Linux to create a disk image, skipping bad sectors. However, if the drive has physical damage (clicking, grinding), do not run ddrescue – seek professional help immediately.
Q: Is the 83240D3 compatible with modern operating systems?
A: Not directly. Modern operating systems can be installed on IDE drives via adapters, but the 32.4 GB capacity is very small by modern standards. This drive is best suited for retro computing projects (Windows 98, Windows ME, Windows 2000, Windows XP).
Q: What are the common firmware issues on this drive?
A: The 83240D3 can experience Service Area corruption where the drive spins but is not detected or shows 0 MB capacity. This requires professional tools like PC-3000 or MRT to repair modules in the service area.
Q: Is this drive worth buying today?
A: Generally no. This drive is over 20 years old. It may be useful for retro computer builds (Windows 98/2000/XP era) as a period-appropriate storage device, but do not use it to store any important data. For data recovery purposes, the 83240D3 is considered a legacy drive with moderate recovery success rates when handled by professionals.
User Reviews & Summary:
Pros (for its time ~2002):
– Single-platter design for 32.4GB model – lower mechanical complexity
– 5400 RPM with 9.0 ms seek time – acceptable for mainstream desktop use
– Ultra ATA/133 interface – fast for the era
– 2 MB cache – standard for budget/mainstream drives
– 500,000 hour MTBF rating
Cons (by modern standards):
– 32.4 GB capacity is insufficient for modern operating systems
– IDE interface is completely obsolete
– No separate ROM chip – PCB swaps require exact donor matching
– Known firmware corruption and head failure patterns
– Parts (PCBs, heads) are difficult to source
– 20+ years old – high probability of failure
Final Verdict:
The Maxtor 83240D3 (DiamondMax Plus 8 series, 32.4 GB) was a solid budget-to-mainstream desktop hard drive in the early 2000s, offering acceptable performance for its time at an affordable price point. It was part of Maxtor’s popular DiamondMax line which competed with Western Digital’s Caviar and Seagate’s Barracuda series.
However, this drive is now over 20 years old and has developed known failure patterns including PCB failure, firmware corruption, and head issues. If you still have a working 83240D3 today, it should only be used for retro computing projects (Windows 98/ME/2000/XP builds) as a period-appropriate collector’s item – never store irreplaceable data on it. For data recovery from a failed drive, DIY attempts beyond simple logical recovery have low success rates; professional recovery is strongly recommended for valuable data, especially if the drive makes clicking or grinding noises.
Pro Data Recovery Tip: If your 83240D3 is clicking, do not repeatedly power cycle the drive. Each power cycle may cause the heads to scrape the platters, turning a potentially recoverable case into a hopeless one. Power off immediately and consult a professional data recovery service.
“`
