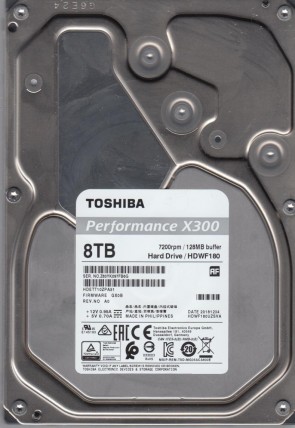

Toshiba HDWF180 3.5″ internal hard drive with a storage capacity of 8 TB and featuring a SATA interface. Toshiba HDWF180 Performance X300 8 TB 3.5″ Internal Hard Drive Serial ATA-600 7200 RPM 128 MB Buffer.
All information about the Toshiba HDWF180 hard disk drive: technical parameters, failure symptoms, frequently asked questions, reviews, HDD repair and data recovery.
Toshiba HDWF180 Technical Details:
Note: The Toshiba HDWF180 is part of the premium Performance X300 retail internal hard drive line. It features a high-torque 7200 RPM spindle motor paired with a 128 MB buffer cache, engineered to eliminate latency and boost processing speeds in graphic design workstations, high-end gaming rigs, and high-load local desktop backup arrays. Built on enterprise-class CMR (Conventional Magnetic Recording) technology, this drive ensures steady random write performance and integrates multi-axis shock sensors to actively cushion data tracks against PC case vibrations.
Toshiba HDWF180 Hard Drives:
- HDWF180 – 8 TB SATA III 3.5″ Internal High-Performance Desktop Hard Drive, Performance X300 series
- Features universal 3.5-inch standard internal SATA data and power connector slots on the base.
Toshiba HDWF180 Failure Symptoms:
- Rhythmic Metallic Knocking (Actuator Head Collapse):
Due to its high-speed 7200 RPM rotation, sudden physical jars or drops while active can deform the micro-read/write head assembly. The drive will emit a sharp, repetitive “click-click-click” sound as the damaged heads fail to lock onto internal servo tracking zones, followed by an automated spin-down for platter protection. - Firmware G-List Module Lockout (0-GB / Busy Status):
If high-density CMR platters accumulate bad sectors, the internal Growth List (G-List) can overflow. The drive’s controller firmware will lock down for self-protection; the disk spins up normally and smoothly with zero clicking noise, but it fails to register in the computer’s BIOS or shows up as a generic 0 GB volume. - Overvoltage TVS Diode Blowout (Completely Dead Circuit):
High-performance desktop power surges or faulty modular PSU cables can instantly short-circuit the overvoltage protection TVS diodes on the PCB. The drive will show absolutely no signs of life—no spin, no vibration, and no heat—and may cause the PC power supply to trip its safety shutdown loop. - Advanced Format Micro-Bad Sectors (100% Active Time Hang):
When underlying 4K physical blocks begin to face magnetic decay, reading files will suffer massive read-timeout latencies. Windows Task Manager will spike at 100% active disk time while real data throughput drops to 0 KB/s, freezing the system interface intermittently.
Toshiba HDWF180 Data Recovery & HDD Repair:
When it comes to data recovery one of the most common problems Toshiba HDWF180 hard drive experience is a burned circuit board (PCB). Therefore, if you need to replace the PCB, be sure to match the “PCB Number” of the current board, such as G4013A, etc.
